  • JRS2 Series Thermal Relay

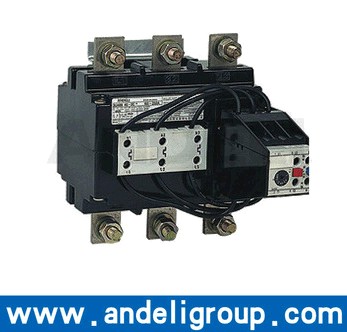

JRS2 Series Thermal Relay

1. Standard: IEC60947-4-1 2. CE certification 3. Connect with CJX1 4. OEM business is acceptable

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : JRS2-400/F
Theory: : Thermal Relay
Usage: : Protective
Size: : Miniature
Voltage up to: : 660V
Current up to: : 630A
Stardand: : IEC60947-4-1

Description


JRS2 Series Thermal Relay

Why choose us?

1. 20 years - Andeli Group Co., Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150, 000,000 - The total assets is USD150, 000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……


Application

JRS2 thermal relay is suitable for AC 50/60Hz, voltage up to 660V and current up to 630A, general AC motor of long or discontinuous long operation, used as overload protection and has the functions of breaking phase protection, temperature compensation, and trip indication. It can automatically and manually get back. It can be fixed with contactor CJX1 together, also be independently fixed. The product conforms to IEC60947-4-1 standard.


Motion Characteristic: Three-phase Balance Motion Time

No
Times of the setting current
Motion time
Start condition
Ambient temperature
1
1.05
>2h
Cold state
20±5oC
2
1.2
<2h
Heat state(Following the No.1 test)
3
1.5
<4min
4
7.2
10A
2s< Tp≤10s
≤63A
Cold state
10
4s< Tp≤10s
>63A


Phase-losing Motion Characteristic

No
Times of the setting current
Motion time
Start condition
Ambient temperature
Any two phases
Another phase
1
1.0
0.9
>2h
Cold state
20±5oC
2
1.15
0
<2h
Heat state(Following the No.1 test)


Specification

Type
Number
Setting range(A)
For contactor

Type
Number
Setting range(A)
For contactor
JRS2-12.5/Z
0A
0.1~0.16
CJX1-09
CJX1-12

JRS2-25/Z
0A
0.1~0.16
CJX1-16
CJX1-22
0C
0.16~0.25
0C
0.16~0.25
0E
0.25~0.4
0E
0.25~0.4
0G
0.4~0.63
0G
0.4~0.63
0J
0.63~1
0J
0.63~1
0K
0.8~1.25
0K
0.8~1.25
1A
1~1.6
1A
1~1.6
1B
1.25~2
1B
1.25~2
1C
1.6~2.5
1C
1.6~2.5
1D
2~3.2
1D
2~3.2
1E
2.5~4
1E
2.5~4
1F
3.2~5
1F
3.2~5
1G
4~6.3
1G
4~6.3
1H
5~8
1H
5~8
1J
6.3~10
1J
6.3~10
1K
8~12.5
1K
8~12.5
2S
10~14.5
2A
10~16


2B
12.5~20


2C
16~25

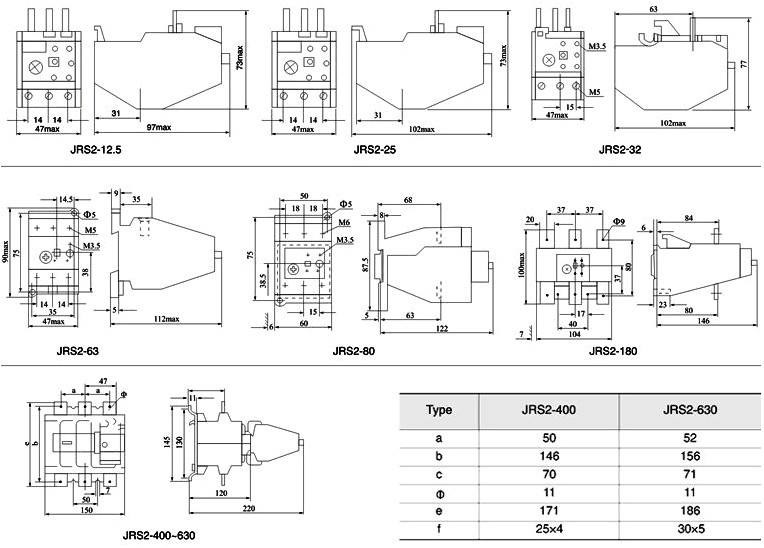

Dimension

outline


JRS2 Series Thermal Relay

JRS2 Series Thermal Relay

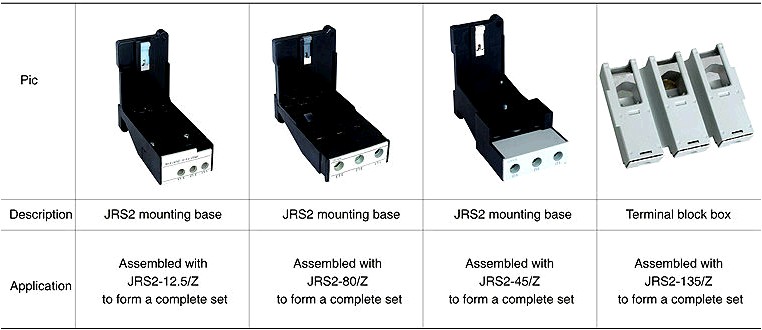

Accessories

Accessories
