  • JR56 Series Thermal Relay

JR56 Series Thermal Relay

1.Rated up to 660V 2.Suitable:50HZ and 60HZ 3.The current range:9-95A 4.CE certification 5.IEC60947-4-1 stardand

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : JR56
Theory: : Thermal Relay
Usage: : General Purpose
Size: : Miniature
Protect Feature: : Sealed
Contact Load: : Low Power
Used in the circuit: : 50/60Hz
Rated Insulation Voltage: : 660V
Rated Current: : 0.3-95A

Description


JR56 Series Thermal Relay

Why choose us?

1. 20 years - Andeli Group Co., Ltd is founded in 1993.

2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.

3. 300 cooperating companies - We have over 300 cooperating companies.

4. 3000 workers - We have over 3000 workers.

5. USD150,000,000 - The total assets is USD150,000,000.

6. 235,000 square meters - The area of Andeli is 235,000 square meters.

7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……


Application

JR56 series thermal relay is used in the circuit of 50/60Hz, rated insulation voltage 660V, rated current 0.3-95A for protecting the phase break when the electric motor is overloaded. The relay has different mechanism and temperature compensation. It can be plugged in CJX3 series AC contactor. The product conforms to IEC60947-4-1.


Motion Characteristic: Three-phase Balance Motion Time


No
Times of the setting current
Motion time

Start conidition
Ambient temperature
1
1.05
>2h

Cold state
20±5oC
2
1.2
<2h

Heat state (Following the No.1 test)
3
1.5
<4min

4
7.2
10A
2s<Tp≤10s
≤63A
Cold state
10
4s<Tp≤10s
>63A


Phase-losing Motion Characteristic


No
Times the setting current
Motion time
Start condition
Ambient temperature
Any two phases
Another phase
1
1.0
0.9
>2h
Cold state
20±5oC
2
1.15
0
<2h
Heat state(Following the No.1 test)


Specification

Type
Setting range (A)
For contactor
JR56-20
0.3~0.5
CJX3-10

CJX3-11

CJX3-12

CJX3-16

CJX3-18

CJX3-19

CJX3-25
0.6~1
1~1.6
1.5~2.5
2~3
3~5
4~6
4.8~8


Type
Setting range (A)
For contactor
JR56-20
7.5~12

12~18
20~28
JR56-63
24~34
CJX3-35

CJX3-50

CJX3-65

CJX3-80
25~40
28~62
48~80
60~95

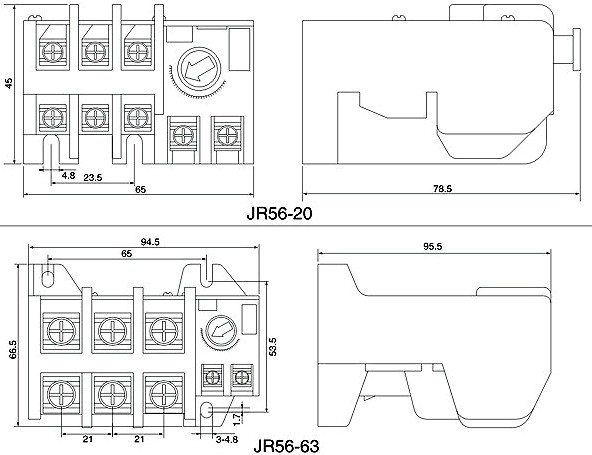

Dimension

outline

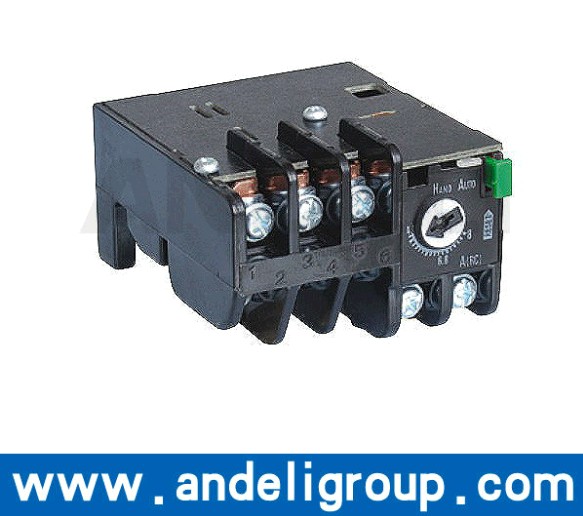

JR56 Series Thermal Relay
