  • JR-SS Electronic Overload Relay

JR-SS Electronic Overload Relay

1.CE certification 2.IEC60947-4-1 stardand 3.acceptable for OEM

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : JR-SS
Theory: : Voltage Relay
Usage: : General Purpose
Size: : Miniature
Protect Feature: : Sealed
Contact Load: : Low Power
Frequency: : AC 50/60Hz
Voltage up to: : 600V
Current up to: : 60A
Standard: : IEC60947-1

Description


JR-SS Electronic Overload Relay

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.

2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.

3. 300 cooperating companies - We have over 300 cooperating companies.

4. 3000 workers - We have over 3000 workers.

5. USD150,000,000 - The total assets is USD150,000,000.

6. 235,000 square meters - The area of Andeli is 235,000 square meters.

7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……


Application

JR-SS electronic overload relay is suitable for AC 50/60Hz, voltage up to 600VAC and currentup to 60A. It is used as overload and phase loss protection, independently adjustable startingand trip delay, visual current setting aid and trip indication, fail safe protection (N type) andelectronic shear pin function. The product conforms to IEC60947-1 standard.


Specification

Type
JR-SS
Current range
05)0.5-5A(scale 6.5A)
30)3-30A(scale 35A)
60)5-60A(scale 70A)
Rated voltage
600VAC,50/60Hz
Operation setting
D-TIME
0.2-30seconds
O-TIME
0.2-10seconds
Accuracy
Current
±10%
Time
±15% of max.time set value
Time characteristics
Definite time

Control voltage
220)Voltage free(90~260)VAC,50/60Hz
440)Voltage free(320~480)VAC,50/60Hz
Other voltage optional.
Current sensing
2 CTs
Output contacts
Contacts
SPDT 3A/250VAC Resistive
Condition
N Type
Normally energized:95-| |-98closed
R Type
Normally De-energized:95-|/|-98closed
Reset
Manual or remote electrical by interrupting supply
Environment
Temp. Run
Run
-20+70 deg.oC
Store
-30+80 deg.oC
Humidity
45~85% RH,non-condsing
Insulation
Between casing and circuits:Over 10MΩ with DC 500V megger
Dielectric strength
1)Between casing & circuits:AC 2000V,60Hz,1 min
2)Between contacts:AC 1000V,60Hz,1 min
3)Between contacts:AC 2000V,60Hz,1 min
Power consumption
Under 2W
Mounting
35mm Din Rail(D)
The run-up current of motor(starting current)does relay trip because overcurrent protection of AJR-SS is not applied during motor run-up time.

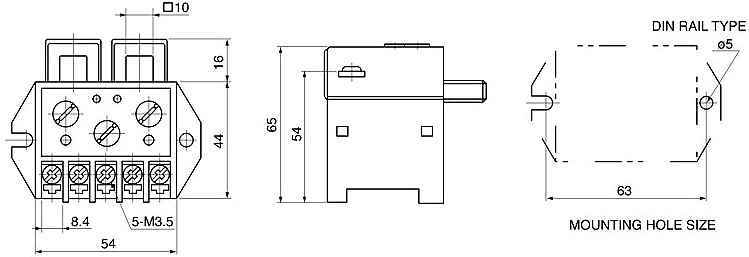

Dimension

Dimension
