  • JR-2 type rectangle metalic hoses

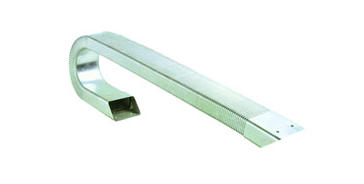

JR-2 type rectangle metalic hoses

The rectangle metalic hosed has a totally metatic construction. The product is according to the standard JB/ GQ58285 and suitable for all types of metal curing machine tools and slicing machines Protect working personnel,electric circuits.water supplying piping systems and gas loops from damaging or injured。

Product Details

Quick Details

Description

Model selction
1. Give a clear indication of the specifications and medel numbers as given below;

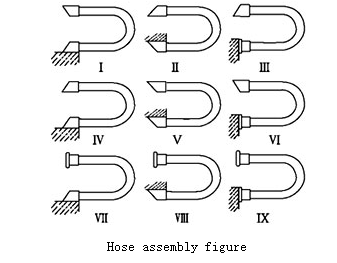

A X B X L-assembly type;L-hose length,including the assembly of the connectors,please see the hose assembly figrue for specifics:1

2.Special connector types:a-c;
Example:25×50×1200-
25×50×1200-AB-

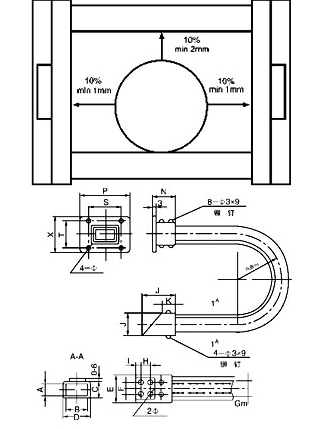

Connector's dimensions and specifications



ID

OD

C

D

E

F

G

H

L

J

K

N

P

S

X

T

F

R

Axial pulling force
(kg)

weight
(kg/m)

22×32

27.5×36.7

20

35

38

18

25

10

23

45

20

40

75

60

55

38

5.5

60

35

1.3

25×50

31.5×54.5

30

55

58

30

35

10

33

60

25

50

90

75

60

45

5.5

90

40

1.75

35×60

40.1×64.4

40

65

69

40

45

10

44

70

30

50

100

80

70

52

5.5

100

50

2.1

38×73

43.7×77.8

43

78

82

50

55

10

47

75

35

50

105

85

82

62

6.5

110

60

2.36

40×80

45.4×84.7

45

85

89

50

65

20

49

90

40

55

120

100

90

68

8.5

120

70

2.5

52×102

57×5×107.8

57

107

113

65

80

20

63

105

45

60

140

120

100

80

8.5

140

75

2.85

60×120

67×5×127.7

68

128

131

90

90

20

71

135

45

70

170

146

110

84

9

180

80

3.15

60×130

65.1×134.4

68

138

141

95

100

20

71

140

50

75

180

150

120

90

9

180

80

3.25

72×162

78.4×168.2

86

180

184

120

120

20

82

150

60

80

210

180

130

100

9

210

80

4.5
