• JFS Series Open Portable Stainless Steel Coalescence-Separation Oil Purifier

JFS Series Open Portable Stainless Steel Coalescence-Separation Oil Purifier

1) Vacuum Oil Purifier 2) Coalescence-Separation techque 3) Dehydration efficiency 4) Purifying lubricating oil

Product Details

Quick Details Parameter

Condition: : New
Type: : Suction Filter
Structure: : Vacuum
Place of Origin: : Chongqing, China
Brand Name: : WANMEI
Model Number: : JFS-300R
Power(W): : 17200
Weight: : 850KGS
Dimension(L*W*H): : 248*130*165CM
Certification: : ISO9001
Warranty: : ONE YEAR
After-sales Service Provided: : Engineers available to service machinery overseas
Certificate: : TUV Rheinland
Brand: : OEM available
Color: : Optional

Description

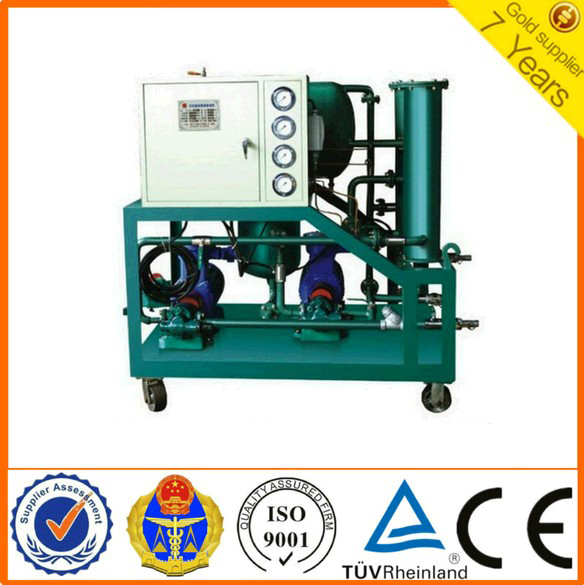

JFS Series Open Portable Stainless Steel Coalescence-Separation Oil Purifier

JFS Series coalescence-separation oil purifier

General Description:

Adopted international advanced "coalescence & separation" technology, JFS coalescence & separation on-line oil purifier is an on-line turbine oil purifier developed by Waimei Company, which can be used as oil filtration equipment for breaking emulsification, dehydration and removing impurities for all low-viscosity lubricating oils.


Characteristics:

1 .Integrated with precise-filtration and high-efficiency dehydration function, it can break emulsion in the oil and water, removing free water from oil. After treatment, free water content is lower than 80PPM. It can remove solid particulates from oil. The purified oil cleanness complies with NAS7 requirement.

2. It is with high-precise filtration effect, large pollutant containing capacity, long-life filtration element, and high-efficient dehydration.

3. There is no heating, pumping or centrifugal process, so as to lower the cost.

4. There is no effect on oil physical and chemical property so as to extend oil service life.

5. There is an alarm on filter element malfunction and overload of electrical apparatus.

6. There is an automatic water drainage and volume measurement.

7. It’s capable of working onsite and on line.

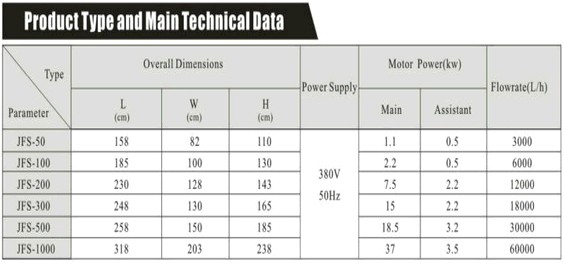

parameter


JFS Series Open Portable Stainless Steel Coalescence-Separation Oil Purifier

JFS Series Open Portable Stainless Steel Coalescence-Separation Oil Purifier


Application Scope:

The machine is mainly used to purify turbine oil and low viscosity lubricating oil with much water and heavily emulsified. Due to the obvious effect in breaking emulsion and dehydration, it is widely used in the power generation plants and factories. It can work onsite and on line by connecting the machine to the oil container of the generation equipment, without interference of power supply.

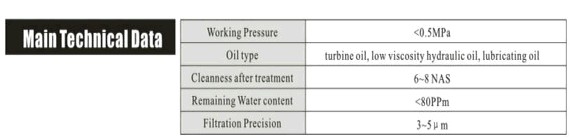

main parameter


Maintenance

A. check and adjust after oil purifier works for a period of time
1. All the electric control apparatus
2. Temperature controller
3. Oil seals and motor couplings
4. Clean filter elements, check pumps and motors
5. All the pipes for leaking
B. Clean the motor and change the lubricating grease
C. Check and add specified lubricating oil to vacuum pump,
D. If oil purifier is not in use for one month or more, put it on a dry, flat ground, close all valves and electric cabinet, cove the whole machine with canvas.


The result of purified oil and before.

difference


Our office and factory

Our office is Bright and spacious and the factory is clean and tidy, welcome to visit us and have business negotiation here!


Our Products

Wanmei has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, etc.


Our Clients

Wanmei has already cooperated with our domestic and overseas customers since 2001. More and more clients select our oil purifier as their products identification. Hope one day your logo can be put here!


Package & Delivery

Normally, we pack our machine with wooden cases. If you have special requirements, please mention that in advance. The main packing method:
Wooden case with waterproofing felt in side for airplane transportation & ocean transport.


deliver


Return & Feedback

We can provide the main component for each marking machine. You can send back the unqualified spare parts to maintenance or replacement the new spare parts for your marker.

After-sales Services

One year guarantee for product quality. (People damaged parts are charged).
Lifelong maintenance and spare parts supply.
Free design of fixtures as customers required.
Free training for machines installation and operation of the staffs.

Company Profile


wanmei logo

Chongqing Wanmei Electric & Machinery Co., Ltd. and Chongqing Wanmei Oil Purifier Research Institute are high-tech enterprises for research, development and production of oil purification equipment, automatic water purifier, gasifier and other electrical maintenance equipment. The company has unique capability in scientific research and equipment production, with the help of professional scientific experts, specialists and other technicians. Over 70% of the company's staff members are graduates from various colleges.

The company lays much emphasis on high technology research and applications to practical production, gaining a lot of patented technique certificates, know-how certificates, and ISO9001 international certificate. It is granted with independent right for international trade. "Wanmei" trademark has been registered in the People's Republic of China, and "Wanmei" brand has been widely acknowledged in the world market.

Wanmei has assigned to itself the great task of "saving natural resources and protecting biological environment". It has developed 32 series and 280 different models of products, based on the latest scientific research and advanced technology both in China and abroad. All these products are working properly in different industries of electrical generation, petroleum, chemistry, metallurgy, machinery, mining, aviation, ship-building, railway transportation, and so forth. Wanmei oil purifier is characteristic for its fine filtration, steady operation, energy saving, auto control and easy maintenance, which has won high praises from our customers all over the world.

Wanmei gives its guarantee to all customers both at home and abroad of reliable quality products, reasonable price and good service. We will serve our new and old customers with "Wanmei technology, Wanmei products, Wanmei quality, Wanmei service and Wanmei credit", and open up a brilliant new prospect together with all our customers.

Wanmei Building
