• JCZ8C Capacitor Vacuum Contactor 12KV /7.2KV 160A-800A

JCZ8C Capacitor Vacuum Contactor 12KV /7.2KV 160A-800A

JCZ8C Capacitor Vacuum Contactor 12KV /7.2KV 160A-800A 12kv 7.2kv 160A -800A. ISO9001-2000 Certificated. Very professional factory.

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : CHENNUO
Model Number: : JCZ8C
Electricity Type: : AC
Number of Pole: : 3
Phase: : 3
Main Circuit Rating Voltage: : 12KV 7.2KV 3.6KV
Main Circuit Rating Current: : 160A 250A 400A 630A 800A
Rated current: : 160A 250A 400A 630A 800A
Rated voltage: : 7.2KV
Coil voltage: : 36V 110V 220V 380V 440V

Description


JCZ8C Capacitor Vacuum Contactor 12KV /7.2KV 160A-800A

Detail description

JCZ8C Series special-purpose high voltage vacuum contactor switch for switched capacitors
This series of vacuum contactors used switched capacitor vacuum switching tube and insulating bracket, metal frame firmly into one, safe and reliable. The agency travel and breaking capacity, together, opening bounce is small, stable, three-phase over the same period type
Application and advantages: This kind of vacuum contactor is especially suitable for the load of the capacitor bank, this kind of vacuum contactor has 3 models: Electric maintain type, Mechanical keep type Permanent magnetic actuator type and the secondary control is simple and reliable


Main Tech-Parameter

JCZ8C 12/7.2kv Series AC vacuum contactor
Model Tech parameter
160/12(7.2)KV
250/12(7.2)KV
400/12(7.2)KV
630/12(7.2)KV
800/12(7.2)KV
Main circuit rated voltage (KV)
12(7.2)
12(7.2)
12(7.2)
12(7.2)
12(7.2)
Main circuit rated current (A)
160
250
400
630
800
Main circuit making capacity
(A/100times)
1600
2500
4000
6300
8000
Main circuit break-make
ability (A/25times)
1280
2000
3200
5000
6000
Maximum break ability (A/3times)
3200
4000
4500
6300
8000
Mechanical life (times)
100 0000
100 0000
100 0000
100 0000
100 0000
Engineering lock life (times)
10 0000
10 0000
10 0000
10 0000
10 0000
Electricity life AC3(times)
25 0000
25 0000
25 0000
25 0000
25 0000
Electricity life AC4(times)
10 0000
10 0000
10 0000
10 0000
10 0000
Permanent magnetic actuator life(times)
20 0000
20 0000
20 0000
20 0000
20 0000
Power-frequency withstand voltage
for main circuit(fracture)(kv)
42(32)
42(32)
42(32)
42(32)
42(32)
Phase-phase phase -to current
withstand voltage(KV)
42(32)
42(32)
42(32)
42(32)
42(32)
Lightning impulse withstand voltage (KV)
75(60)
75(60)
75(60)
75(60)
75(60)
Rated operate frequency(times/h)
300
300
300
300


Permanent magnetic actuator operating frequencies(times/h)
120
120
120
120
120
Terminal pressure(N)
>100
>100
>100
>100
>100
Clearance between open contacts (mm)
7(6)±0.5
7(6)±0.5
7(6)±0.5
7(6)±0.5
7(6)±0.5
Over travel (mm)
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
Main circuit electric resistance(   μΩ )
≤200
≤200
≤200
≤200
≤200
Total weight(kg)
30(25.5)
30(25.5)
30(25.5)
30(25.5)
30(25.5)

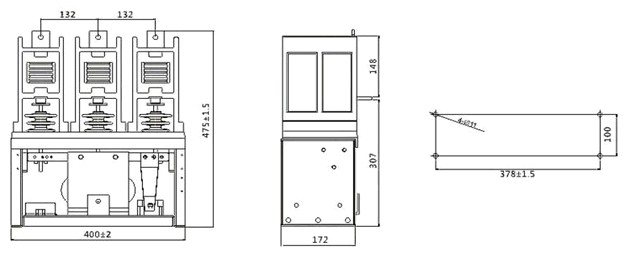

Outline and Installation Size

outline

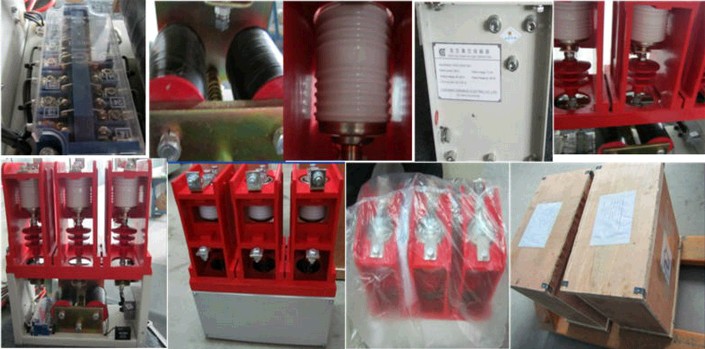

Product detail

product detail


R&D Department

r and d


Factory and workshop Views

factory

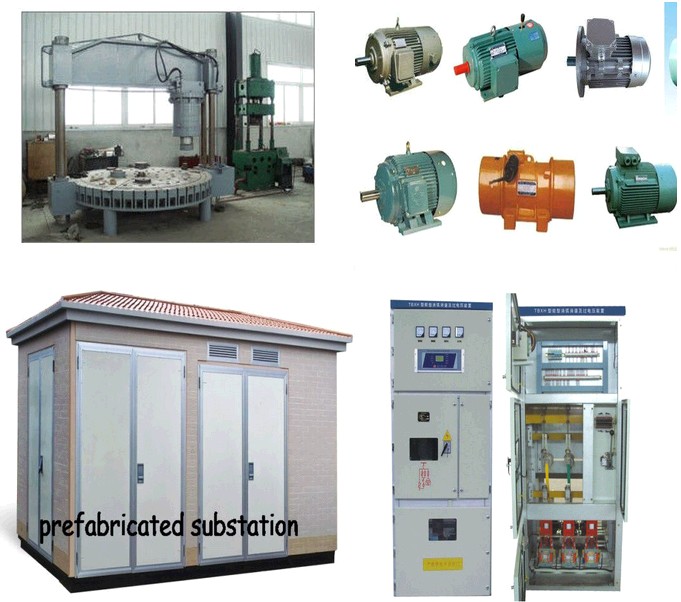

Applications

application

Company Profile


logo

Chennuo Electric is a high-tech enterprise, establised in 2004 ,specialized in manufacturing high & low voltage vacuum electric appliance, which merges research and development, production and sales into a single whole. The main products include high & low voltage vacuum contactors, outdoor & indoor high voltage vacuum circuit breakers, high voltage vacuum load switch, hoist sets of electronically controlled equipment, automatic reactive compensation devices, wind and solar energy-saving devices and other products, widely used in coal, electricity, mining, cement, and chemical industry. All these products are deeply trusted by the customer!

In order to ensure that the product quality is stable, the user use it safely,all of our vacuum contactos have had 1000 times institutions running test before leaving our factory.

We accept OEM and small trial orders. Contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
