• JCZ5 160A 250A 400A/7.2KV High Voltage Vacuum Contactor

JCZ5 160A 250A 400A/7.2KV High Voltage Vacuum Contactor

High voltage vacuum contactor ISO9001-2008 10 years ac contactor experience Professional and good service

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : CHENNUO
Model Number: : JCZ5
Electricity Type: : AC
Number of Pole: : 3
Phase: : 3
Main Circuit Rating Voltage: : 12KV 7.2KV
Main Circuit Rating Current: : 160A 250A 400A 630A 800A
Rated current: : 160A 250A 400A 630A 800A
Rated voltage: : 12KV 7.2KV
Coil voltage: : Coil voltage:
Altitude of Installation Site: : <=2000m
Site: : No Obvious Wag and Impact at the Site
Main Circuit Rating Current: : <=630A
Frequency: : AC 50-60HZ

Description


JCZ5 160A 250A 400A/7.2KV High Voltage Vacuum Contactor

Detail description

1.This series of vacuum contactor use overall insulation frame structure with high - quality vacuum switch tube , and secondary control is simple and reliable , stable performance, the external installation of the overall insulation cover , beautiful outlook .
2.We have optimized the transmission mechanism, to make them more compact, also have good synchronization performance, small bounce. We have three types for our customer: Electric maintain type, Mechanical keep type Permanent magnet type they can choose as their different condition

Main Tech-Parameter

JCZ5 Series AC vacuum contactor
 Detail Model Tech parameter
160/12(7.2)KV
250/12(7.2)KV
400/12(7.2)KV
630/12(7.2)KV
800/12(7.2)KV
Main circuit rated voltage (KV)
12(7.2)
12(7.2)
12(7.2)
12(7.2)
12(7.2)
Main circuit rated current (A)
160
250
400
630
800
Main circuit making capacity(A/100times)
1600
2500
4000
6300
8000
Main circuit break-make ability (A/25times)
1280
2000
3200
5000
6000
Maximum break ability (A/3times)
3200
4000
4500
6300
8000
Mechanical life (times)
100 0000
100 0000
100 0000
100 0000
100 0000
Engineering lock life (times)
10 0000
10 0000
10 0000
10 0000
10 0000
Electricity life AC3(times)
25 0000
25 0000
25 0000
25 0000
25 0000
Electricity life AC4(times)
10 0000
10 0000
10 0000
10 0000
10 0000
Power-frequency withstand voltage for main circuit(fracture)(kv)
42(32)
42(32)
42(32)
42(32)
42(32)
Phase-phase phase -to current withstand voltage(KV)
42(32)
42(32)
42(32)
42(32)
42(32)
Lightning impulse withstand voltage (KV)
75(60)
75(60)
75(60)
75(60)
75(60)
Power-frequency withstand voltage for control circuit(kv)
2
2
2
2
2
Rated operate frequency(times/h)
300
300
300
300
300

Mechanical lock operating frequencies
120
120
120
120
120
Terminal pressure(N)
>100
>100
>100
>100
>100
Clearance between open contacts (mm)
6(5)±0.5
6(5)±0.5
6(5)±0.5
6(5)±0.5
6(5)±0.5
Over travel (mm)
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
1.5±0.5
Main circuit electric resistance(   μΩ )
≤200
≤200
≤200
≤200
≤200
Total weight(kg)
30(25.5)
30(25.5)
30(25.5)
30(25.5)
30(25.5)
Work voltage (V)
AC /DC 27v 36v 48v 127v 110v   220v   380 V

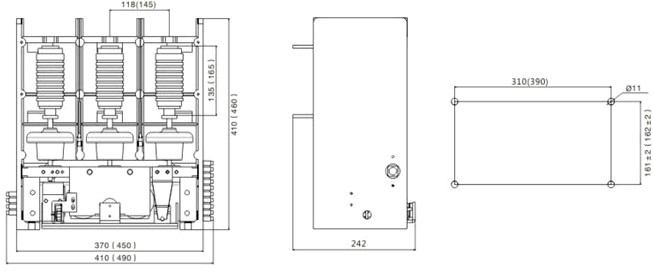

Outline and Installation size

outline


R&D Department

r and d

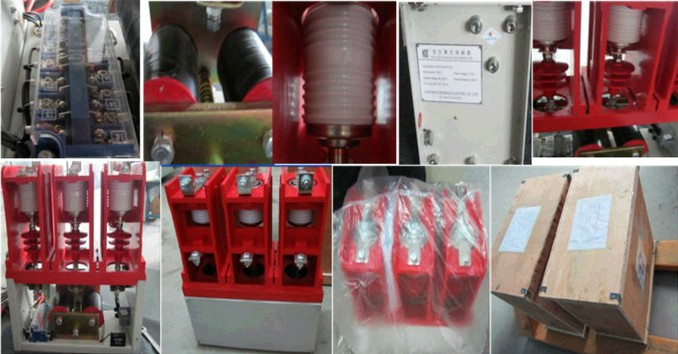

Product details

product detail


Factory and workshop Views

work and factory

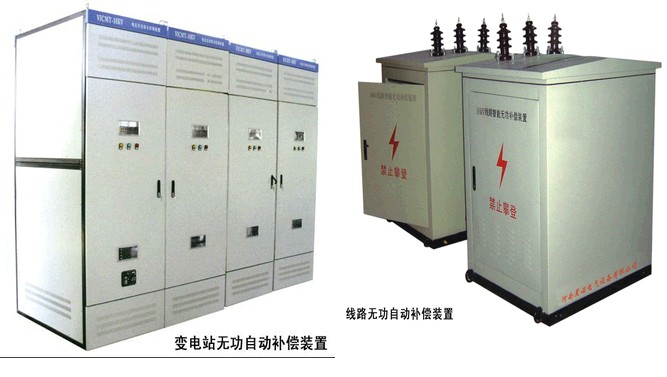

Applications

application

Company Profile


logo

Chennuo Electric is a high-tech enterprise, establised in 2004 ,specialized in manufacturing high & low voltage vacuum electric appliance, which merges research and development, production and sales into a single whole. The main products include high & low voltage vacuum contactors, outdoor & indoor high voltage vacuum circuit breakers, high voltage vacuum load switch, hoist sets of electronically controlled equipment, automatic reactive compensation devices, wind and solar energy-saving devices and other products, widely used in coal, electricity, mining, cement, and chemical industry. All these products are deeply trusted by the customer!

In order to ensure that the product quality is stable, the user use it safely,all of our vacuum contactos have had 1000 times institutions running test before leaving our factory.

We accept OEM and small trial orders. Contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.
