JBZ-S12 double-sided PE coated paper cup forming machine

JBZ-S12 double-sided PE coated paper cup forming machine is a multistation full-automatic machine producing double-sided PE coated drink cups, ice cream cups or conical vessels of other food through continuous process of paper feed, ultrasonic medium welding, tube forming, cup rabbet lubrication, oil injection, bottom flushing, duplex bottom heating, bottom knurling, upper mouth hemming and finished product stacking. Because of ultrasonic adhesion technology, the product is suitable for double-sided PE coated paper full printed drink cups, ice cream cups and other conical vessels.

Product Details

Quick Details

Description

Main Characteristics:

1. Adopt ultrasonic wave technology bonding, which ensures high bonding strength and handsome appearance.

2. Precise box type indexing cam structure, the parts all adopt standard production, have high generality and good exchange performance, and facilitate equipment maintenance.

3. The paper holder is provided with paper feeding detection function, so that it will alarm automatically when the paper is less than a certain amount. (optional according to the demand of the customer)

4. The heat seal barrel forming part is provided with non-cup-barrel detection, alarming and sopping functions, which enhance the automation degree of the machine. (optional according to the demand of the customer)

5. The bottom-punching part is changed into mechanical probe type detection which ensures the detection precision and the pass rate of finished products.

6. The machine adopts high-position stopping device, so that the machine always stops at the highest point, the mold and the heating furnace are fundamentally separated and the paper cup is prevented from being burned.

7. The large vertical shaft of the machine adopts oil tank lubricating, which ensures that the vertical shaft is soaked in the lubricating oil and is not damaged after long-time running.

8. The company has improved the rolling part, the bottom punching part, the heating part, the rolling wheel and paper cutting, being capable of producing thick paper which is more than 300g/㎡, and is free of water seepage and water leakage.



Technical Parameters



Technical Specification:

Model

JBZ-S12 Automatic Ultrasonic Paper Cup Machine

Paper Cup Size

3oz-12oz (mold exchangeable)60ml-330ml

Raw Material

One-side/Two-side PE (polyethylene) film coated/laminated paper

Suitable paper weight

140-350gsm(Recommend 190--320 gsm)

Rated Productivity

45-55 pcs/ minute

Power Source

220V/380V 50Hz or other required

Total Power

5 KW

Total Weight

1600KG

Package Size for machine(L x W x H)

2750 x1300 x1700mm

Package Size for Control Box(L x W x H)

730×600×1100mm

Air Pressure Request

0.2m3/min;0.6MPa (provided by customer)

characteristic

Produce paper cup no seepage and no leakage, Machine long life and less broken



JBZ-S12 double-sided PE coated paper cup forming machine

Company Profile

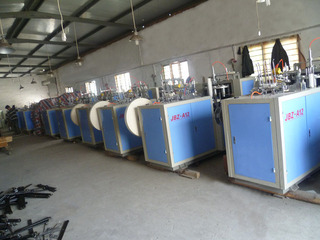

We are a mechanical equipment manufacturing enterprise specialized in producing, trading and researching a series of paper container forming machinery and equipment.

We professionally produce various disposable paper container making machines, such as:
Paper plate machines (ZDJ-500 Intelligent Medium-speed Paper Plat Forming Machines, ZDJ-300 Medium-speed Automatic Paper Plate Forming Machines);
Paper cup machines (JBZ-A12 Automatic Paper Cup Forming Machines, JBZ-S12 Ultrasonic Paper Cup Forming Machines);
Paper bowl machines (JBZ-A30 Automatic Paper Bowl Forming Machines, JBZ-S30 Ultrasonic Paper Bowl Forming Machines);
Paper container machines (DGT-A Full-auto Cake Tray/Dish Forming Machines, ZHCJ-II Semi-auto Paper Dinner Case Forming Machines, ZHCJ-III Semi-automatic Paper Food Pail Machines);
Related machines (JBZ-D Paper Cup/Bowl Sleeve Forming Machines; JB-12 Paper Cup Handle Adhesive Machines).

Since our factory was founded, we have persisted in the business idea of "First Quality, Credit Orientation" in the fierce competitive market. Our products are well distributed to more than 20 provinces and areas at home, and are also exported to many countries. Our reliable products have won wide acceptance for first-class quality and perfect after-sales service at home and abroad.
