  • Iron core winding machine

Iron core winding machine

1. with reversible counting function. 2. good precision . 3. outstanding braking performance. Please contact us! Email:
yuyang@mec.com.cn

Product Details

Quick Details

Description


Skype:snowing1203
MSN:luckywang03@hotmail.com

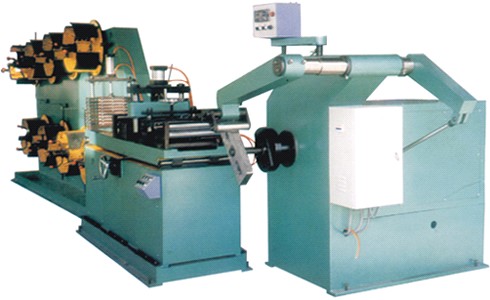

TXJ transformer winding iron core winding machine is the special equipment, machine is composed of an iron core winding head, body, material frame is composed of three components. The fuselage by orientation, deviation, limit, pressing, cutting and other institutions to winding single-phase and three-phase transformer without joint. This machine is advanced in design. High automation, simple operation, convenient repair. Electronic control using variable frequency speed regulation, stable transmission; low noise, high efficiency; reversible electronic counting, accurate and reliable, good braking performance, popular with consumers

TXJ Iron core winding machine
Main technical parameters
NO.
Item
Parameters
TXJ-1
TXJ-2
TXJ-3
1
Fit:
30~800KVA
800~1600KVA
1250~2000KVA
2
Workpiece weight:
2t
2.5t
3t
3
Discharge rack mandrel expansion range:
460~520mm
4
Feed width:mm
≤220
≤280
≤320

Winding radius of gyration:mm
750
900
1200

Motor power
9
13
13
5
Power head spindle speed:RPM
0~18
6
Total weight:kg
4500
5000
5500
7
Dimensions(mm)
8
Winding head:
1860x1500x1730
1960x1650x1880
2060x1750x1980
9
Machine seat:
2065x800x1800
2065x800x1800
2065x800x1800
10
Discharge:
3700x840x2100
3700x840x2100
3700x840x2100
11
Area(mm)
9000x2500
9000x2500
10000x2500


Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
