  • In stock Y31800B manual gear hobbing machine

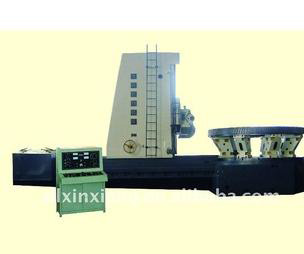

In stock Y31800B manual gear hobbing machine

1.Max.workpiece diameter:8000 2.Min.workpiece diameter:1400 3.Max.modular:30-65 4.Worktable dia.:3730 5.Weight(about):131T Please contact me:naijiaxin11@yeah.net

Product Details

Quick Details

Description

1.This machine is suitable for large batch, small batch and single production of cylindrical spur, helical gears, worm wheel and chain wheel etc. with the process method of continuous cent.

By means of using finger-type milling cutter and reverse mechanism, the machine can produce herringbone gear without slot cutter groove.

This machine is equipped with single indexing mechanism which can realize the function of auto-cycle milling gear by means of using circular milling cutter and finger-type milling cutter.

This machine has excellent features of good rigidity, high strength and precision, easy operation, adjustment and maintenance, as well as a wide range of production processing ability and large modulus. Work table indexing adopts precise worm wheel machine for processing, as well as the adoption of processing technique of rolling, shaving and grinding, which ensured the high gear dividing precision and abrasion resistance ability of indexing worm gear.

2.Main technical parameter:

Items

Y31800B

Maximum workpiece diameter



8000mm

Minimum workpiece diameter



1400mm

Maximum workpiece width



1800mm

Maximum spiral angle



±450

Maximum hobbing modulus

Hobbing steel part

30mm

Hobbing casting part

40mm

Finger-type milling cutter

65mm

Maximum diameter of cutter

Outside diameter

400mm

Length

500mm

Distance of tool post spindle centre to work table centre

Maximum

4450mm

Minimum

750mm

Distance of tool post spindle centre to work table

Maximum

2750mm

Minimum

750mm

Vertical travel of tool post



1800mm

Speed of cutter



5.5-40r/min

Inner hole of work table



1000mm

Depth of the inner hole of work table



1300mm

Diameter of work table



3730mm

Amount of feed

Cutter vertical

0.23-4.6

Cutter horizontal

0.43-8.6

Loading capacity of work table



65T

Total power of the machine



61KW

Overall dimension

Length

13965mm

Width

5070mm

Height

5500mm

Machine weight (gross)



131T
