  • Impact Crusher

Impact Crusher

The impact crusher is widely used in hydroelectricity, highway, artificial stone and sand, building material, etc.

Product Details

Quick Details

Description

Model

Rotor size
(mm)

Feed opening (mm)

Max. feed size (mm)


Capacity (t/h)

Motor Power (kw)

PF0607

Φ644×740

3209×770

100

10-20

30

PF0807

Φ850×700

400×730

300

15-30

30-45

PF1008

Φ1000×800

400×830

300

30-50

37-55

PF1010

Φ1000×1050

400×1080

350

50-80

55-75

PF1210

Φ1250×1050

400×1080

350

70-120

110-132

PF1212

Φ1250×1250

400×1300

350

100-150

132-160

PF1214

Φ1250×1400

400×1430

400

130-180

160-200

PF1315

Φ1320×1500

860×1520

500

160-250

180-260

PF1320

Φ1320×2000

860×2030

500

300-350

300-375


Impact crusher is widely used in crushing many kinds of large, medium, small materials whose side length is shorter than 500mm, and whose compression resistance should not be larger than 350Mpa. The impact crusher is widely used in hydroelectricity, highway, artificial stone and sand, building material, etc.

Working Principle of Impact Crusher:
When the impact crusher works, the motor drives the rotor rotate of the impact crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers effect, under the impacting function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being recrushed. The materials from large size to small size, all of them can be crushed at the impact chamber repeatedly untill the material are crushed to the required size and then discharged from outlet of the impact crusher

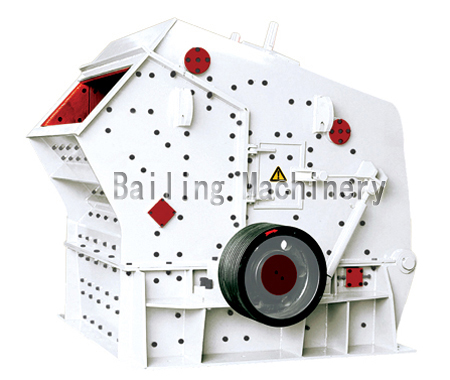

Impact Crusher

Characteristics of Impact Crusher:
Special structure, connected without key, high chrome hammer, unique impact liner, dealing with hard material, high efficiency and saving energy, cubic shape of product, adjustable output size.

Company Profile

Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.
