  • Impact Crusher

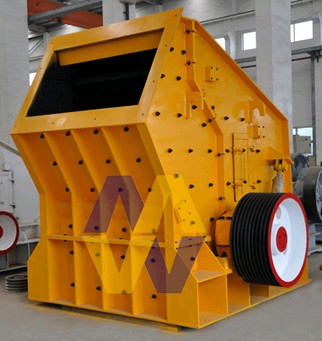

Impact Crusher

Impact crusher is generally used as secondary crusher, for its feeding size is relatively smaller compared to jaw crusher. Impact crusher can also be used as primary crusher according to the customer’s requirements.

Product Details

Quick Details

Description

Model

Specification

Feed opening size(mm)

Max feed size(mm)

output(t/h)

Power(Kw)

Weight(t) (not including motor)

PF-0608

Φ644 × 740

320 × 770

100

10-20

30

4000

PF-0807

Φ850 × 700

400 × 730

300

15-30

30-45

8130

PF-H-1007I

Φ1000 × 700

400 × 730

300

30-50

37-55

9500

PF-A-1010I

Φ1000 × 1050

400 × 1080

350

50-80

55-75

12127

PF-B-1210I

Φ1250 × 1050

400 × 1080

350

70-120

110-132

14000

PF-B-1214I

Φ1250 × 1400

400 × 1430

350

130-180

132-160

18579

PF-1013

Φ1000 × 1300

650 × 1350

400

80-120

90-110

12000

PF-1315

Φ1320 × 1500

860 × 1520

500

160-250

180-260

19000

PF-1320

Φ1320 × 2000

860 × 2030

500

300-350

300-375

24000


Impact crusher is generally used as secondary crusher, for its feeding size is relatively smaller compared to jaw crusher. Impact crusher can also be used as primary crusher according to the customer’s requirements. It is widely used in highway, reservoir, railway, airport construction and other fields that need rock with cubic shape. Impact crusher features high capacity, high performance, high reduction ratio, cubic shape and low flakiness.

Impact Crusher

Its working principle is much similar to hammer crusher’s. When material is fed into the blow bar function area, the materials fall into breakage because of high-speed impact and get the second breakage after being thrown to the impact plate installed above rotor, and finally rebound to the blow bar area to get repeat crushing. The process repeats until materials are broken to the required size and then discharged from the bottom of the crusher. We can get our required size of the end products by adjusting the clearance between the impact frame and the rotor frame.

Company Profile

Shanghai Minggong Heavy Equipment Co., Ltd. is a manufacturer specialized in large and medium-sized mining machinery, metallurgical machinery and building material equipment R & D, production and marketing. In 2005, our company bought 40000 square meters of land in Shanghai Jiading Malu High-Tech Park and built a factory of 18000 square meters, with assets of RMB 15 million and more than 400 employees. Our firm has a scientific research group with 70 technologists and 20 senior engineers. 15 years of experience ensures a well-trained riveter and welder team. Our company has long-term cooperation with many research institutions in China and abroad, bringing in advanced technology of the world.

The products include large-sized ball mills, large-sized rotary kilns, rotary dryers, complete cement plants, jaw crushers, impact crushers, sand makers (vertical shaft impact crushers), feeders, vibrating screens, sand washing machines, belt conveyors and others, totally over one hundred models. These machines are widely used in mining, chemistry, metallurgy, construction material, coal and refractory material industries. The products have passed ISO9001:2000 international quality certification and CE quality certification. Our quality policy is 'Quality first, reputation first, customer first'. The products have been sold to Russia, Japan, Australia, Uzbekistan, Korea, Myanmar, Indonesia, Iran, Chile, Mali, Guinea, Tanzania, Nigeria, the Philippines, Bangladesh and Cuba.

Our company emphasizes fundamental management, has an enterprise management system and carries out position management & ABC management. The production technology is managed by computers. For product development, our firm adopts CAD / CAPP technology. Our company keeps developing new products, investing in technical innovation and improving product quality, to meet different needs of customers.
