IGBT Inverter Multi-Position Welding Machine

IGBT Inverter Multi-Position Welding Machine. For more information, please contact us without any hesitation! E-mail:wangyuhua0321@163.com

Product Details

Quick Details Parameter

Rated Input Voltage AC: : Three-phase 380 V
Power Frequency: : 50/60 Hz
Rated Input Capacity: : 18×3 KVA
Output No Load Voltage: : 75 ± 5 V
Current Adjusting Range: : 20-400 A
Thrust Current Adjusting Range: : 10-230 A
Guide Arc Current Adjusting Range: : 20-160 A
Rated Duty-cycle: : 60 %
Weight: : 125 KG
Dimensions: : 870*405*1080 mm

Description

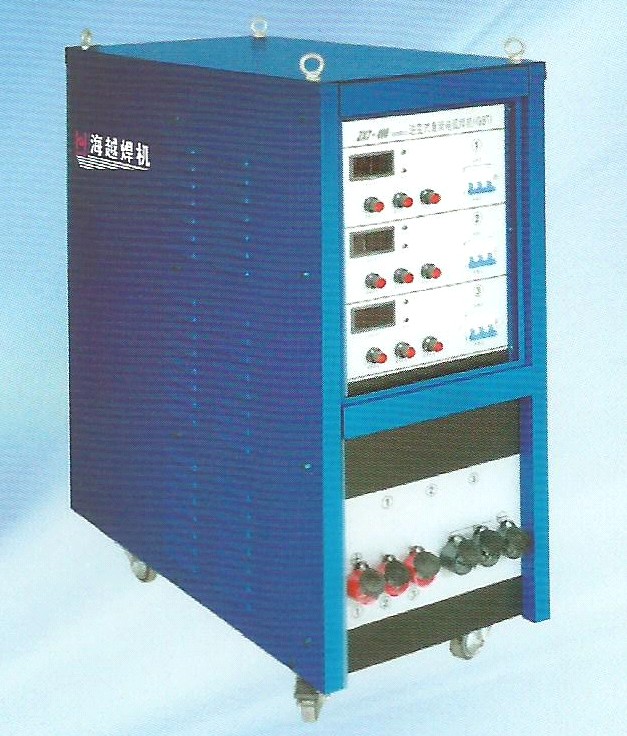

IGBT Inverter Multi-Position Welding Machine

Performance feature and application scope

*  Adopt the advanced soft switch inverter technology and regard importing IGBT module and a little brilliant magnetic core as the key fittings.

*  The digital display of the output electric current can preset the output electric current accurately.

*  The lasting rate of load is high, guide arc electric current and electric current thrust regulating function.

*  Voltage fluctuates and compensates the function automatically, the electric arc is stable, the molten bath is even, it is small to splash, the welding seam is esthetic in shaping.

Can use as three pieces of independent arc-welding power, energy-efficient, it is with low operation costs.

* The air blower adopts the isolation type structure, in case the rainwater is entered.

Light, small, and carry conveniently.

*  Apply to shipbuilding and port machine industry extensively.

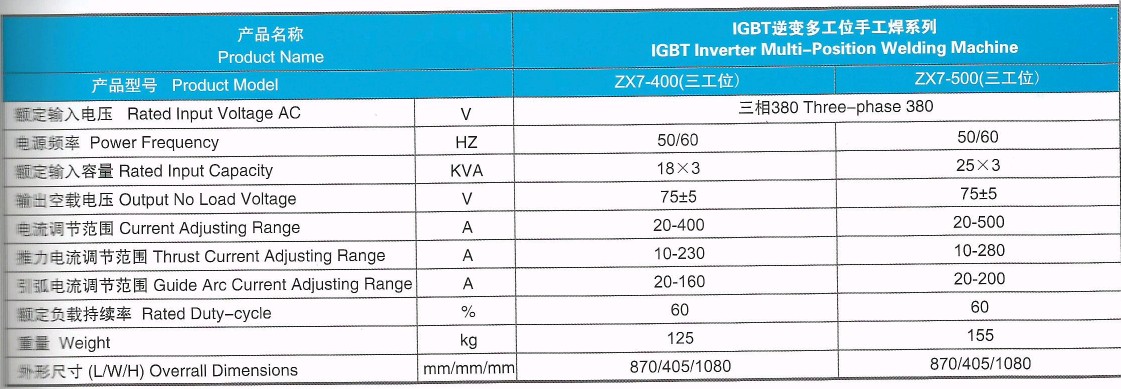

Technical parameters

parameter


IGBT Inverter Multi-Position Welding Machine

IGBT Inverter Multi-Position Welding Machine
