  • Hydraulic Notching machine

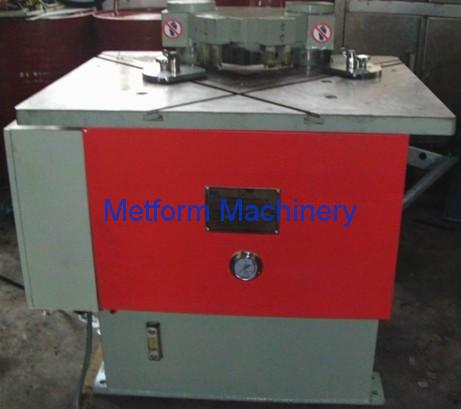

Hydraulic Notching machine

Hydraulic Notching machine/Corner Notcher/Corner Cutter/Corner Shear is a special designed shearing machine used to cut a notch at metal sheet edge or corner. There are Hydraulic Fixed angle notcher, variable angle notcher, multi-station notcher and Manual corner notcher available.

Product Details

Quick Details

Description

Model
QF28Y-6*200ZA
QF28Y-6*200ZK
QF28Y-6*200ZY
QF28Y-6*200ZW
Cutting shape
Right angle
Rectangular groove
Right angle
punching
Right angle
Round
Right angle
Bending
maximum shearing size(mm)
L200
L50×W100
L200
≤¢30
L200
≤R20
L200
≤W300
Cutting thickness (mm)
6mm(Q235 steel)3mm(stainless steel)
Main working table size (mm)
1000×660
Auxiliary working table size (mm)
530×430
Table height (mm)
850
Dimension (mm)
1150×1250×1100
Motor power(kw)
4
Net weight (kg)
1300
fuel tank volume (L)
60

Hydraulic Notching machine/Corner Notcher/Corner Cutter/Corner Shear is a special designed shearing machine used to cut a notch at metal sheet edge or corner. There are Hydraulic Fixed angle notcher, variable angle notcher, multi-station notcher and Manual corner notcher available. Please find ideal Metform notcher for practically any task you need to accomplish and simply select the model with the combination of features that best fit your requirements.

hydraulic notching machine

Company Profile

Metform (Shanghai) machinery Co., Ltd. is located in Songjiang Shanghai, was established in 2004.Metform specializes in design and manufacture of special machine for metal strip manufacture and forming.

We, in METFORM (SHANGHAI) MACHINERY CO. LTD. are designers and builders of high quality metal coil processing line. We supply machines with latest available technology, design and innovation in machinery engineering. The main product are spiral tube forming machine, folding machine, Lock forming machine and bending machine etc for air duct, as well as various specification of small 2 high/4 high mill, slitting and cut-to-length line. Metform deals and exports a wide variety of machines for metal sheet processing and used Construction equipment too.

The promise of Metform is to produce machine with excellent quality, diligently satisfy the customer's need and create value for you by means of our products and service.
