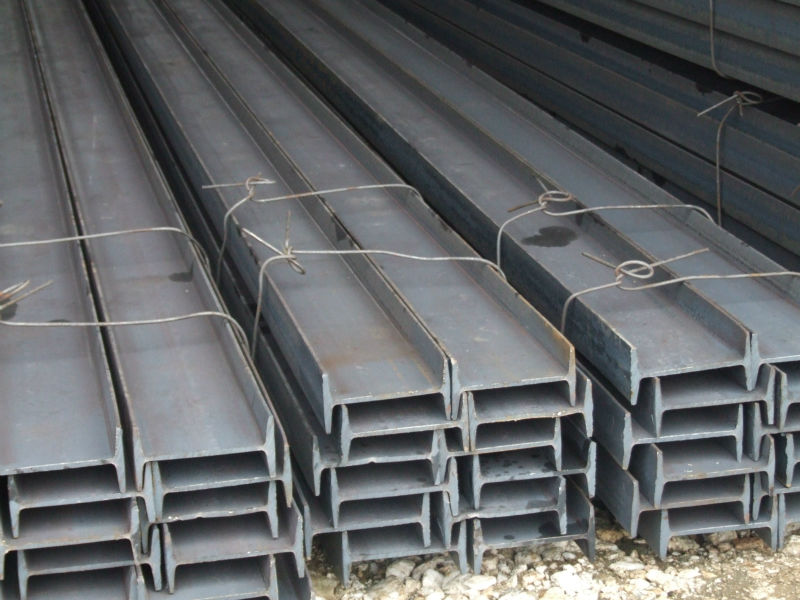

Hot rolled carbon steel i beam

1. BV &9001:2000
2. Steel manufacturer, 30 years experience
3. Near the seaport, low cost
4. Good reputation &service

Product Details

Quick Details

Description

I beam,due to its good mechanical performance,it is widely used in many constructions,especially those large-scaled constructions-workshops,bridges,ships,elevating machinery.equipment founation,support,foundation pile and so on.









We can supply various sizes of i beams on the basic of different Quality Standard.Our company has been delivering quality products to America for years.















 Chinese Standard  I-BEAM



number Specification h(mm) b(mm) d(mm) weight(kg/m) grade length(m) standard MOQ(MT)
8# 80*50*4.5 80 50 4.5 7.52 Q235/Q345/Q235+B 6-12 GB 100
10# 100*68*4.5 100 68 4.5 11.261 Q235/Q345/Q235+B 6-12 GB 100
12# 120*74*5.0 120 74 5.0 13.987 Q235/Q345/Q235+B 6-12 GB 100
14# 140*80*5.5 140 80 5.5 16.890 Q235/Q345/Q235+B 6-12 GB 100
16# 160*88*6.0 160 88 6.0 20.513 Q235/Q345/Q235+B 6-12 GB 100
18# 180*94*6.5 180 94 6.5 24.143 Q235/Q345/Q235+B 6-12 GB 100
20#A 200*100*7.0 200 100 7.0 27.929 Q235/Q345/Q235+B 6-12 GB 100
20#B 200*102*9.0 200 102 9.0 31.069 Q235/Q345/Q235+B 6-12 GB 100
22#A 220*110*7.5 220 110 7.5 33.07 Q235/Q345/Q235+B  6-12 GB 100
22#B 220*112*9.5 220 112 9.5 36.524 Q235/Q345/Q235+B 6-12 GB 100
25#A 250*116*8.0 250 116 8.0 38.105 Q235/Q345/Q235+B 6-12 GB 100
25#B 250*118*10.0 250 118 10.0 42.03 Q235/Q345/Q235+B 6-12 GB 100
28#A 280*122*8.5 280 122 8.5 43.492 Q235/Q345/Q235+B 6-12 GB 100
28#B 280*124*10.5 280 124 10.5 47.888 Q235/Q345/Q235+B 6-12 GB 100
30#A 300*126*9.0 300 126

9.0

48.084 Q235/Q345/Q235+B 6-12 GB 100
30#B 300*128*11.0 300 128 11.0 52.794 Q235/Q345/Q235+B 6-12 GB 100
32#A 320*130*9.5 320 130 9.5 52.717 Q235/Q345/Q235+B 6-12 GB 100
32#B 320*132*11.5 320 132 11.5 57.741 Q235/Q345/Q235+B 6-12 GB 100
36#A 360*136*10 360 136 10 60.037 Q235/Q345/Q235+B 6-12 GB 100
36#B 360*138*12 360 138 12 65.689 Q235/Q345/Q235+B 6-12 GB 100
40#A 400*142*10.5 400 142 10.5 67.598 Q235/Q345/Q235+B 6-12 GB 100
40#B 400*144*12.5 400 144 12.5 73.878 Q235/Q345/Q235+B 6-12 GB 100
40#C 400*146*14.5 400 146 14.5 80.158 Q235/Q345/Q235+B 6-12 GB 100
30#AT 300*126*10 300 126 10 52 Q235/Q345/Q235+B 6-12 GB  100
30#T 300*128*12 300 128 12 64.6 Q235/Q345/Q235+B 6-12 GB 100



Other I Beam that we can produce :





Europ Standard  I-BEAM





specification h(mm) b(mm) d(mm) weight(kg/m)  grade length(m) standard MOQ(ton)
180X91X5.3 180 91 5.3  18.8 08A15/S214JR/S325JRG/as required 6-12 EN10034 200
270X135X6.6 270 135 6.6  36.1 200





Specifications of American Standard  I-BEAM






specification h(mm) b(mm) d(mm) weight(kg/m) Grade length(m) standard MOQ(ton)
127X 76X 4.2 127 76 4.2 13.00kg/m  A36  6-12 ASTM 200
127X 76X 5.4 127 76 5.4   14.88kg/m 200




Japanese Standard   I-BEAM



specification h(mm) b(mm) d(mm) weight(kg/m) grade length(m) standard MOQ
150*75*6.0 150 75 6.0  17.1 SS400/SM400A/SM400B/as required 6-12 JISG 200
125*65*6.0 125 65 6.0 13.1 SS400/SM400A/SM400B/as required 6-12 JISG 200
100*50*5.0 100 50 5.0 9.3 SS400/SM400A/SM400B/as required 6-12 JISG 200

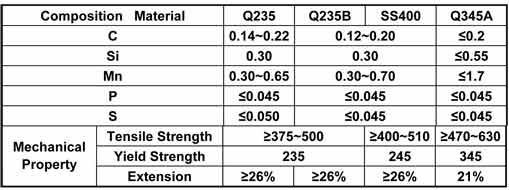

Technique Data















 Production line:









Company Profile

Haicheng Dongsi Section Steel Co.Ltd was established in 1985 and has a thirty-year developmental course in the field of metallurgy industry .It is a large private mainstay enterprise which produces excellent special steels .Our company is located in the north of Liaodong Peninsula,in Haicheng City It is in an advantageous geological position and coonected to the roads extending in all directions.It is connected with Shenda highway and Changda railway through north and south;Gouhai railway, Haixiu railway and Haixiu road across east and west.It is joined with Shenshan highway and located at center of hub of communications.It possesses special railways and can trade with every country and area in the world ,through Dalian port 240 kilometers away from us and Yingkou port 80 kilometers away .
Our company has an area of 980.000 square meters and a construction area of 120.000 square meters.Our company has a total asset of 1 billion RMB and entitled as one of the 100top powerful enterprises of Liaoning Province in 2007.It has 1208 employees ,including 126 technical engineers,6 senior engineers and 23 intermediate engineers .
The achievements we got were history ;the future provides a wider stage for us .All the employees of our company will continue to build a better future for Dongsi Section Steel by their own intelligence and diligence ,with more enthusiasm and continuous aspire .
