  • Horizontal CNC Slant Bed Lathe

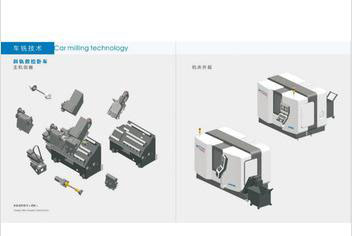

Horizontal CNC Slant Bed Lathe

This lathe can process complex geometric type, high accurate requirement rotate parts including column surface Please contact:yudafu091@yeah.net

Product Details

Quick Details

Description

Specification



Item

Unit

A-HTH203S

Capacity

Max. swing dia. over bed

mm

Φ400

Max. swing dia. of sliding base

mm

Φ260

Max. turning length

mm

350

Max. turning dia.

mm

Φ200

Max. bar dia.

mm

Φ50

Spindle

Hydraulic chuck dia.

mm

Φ165

Spindle head type



A2-5

Spindle through-hole dia.

mm

Φ56

Spindle bearing dia.(front/back)

mm

Φ90/Φ90

Spindle speed

r/min

20-5000

Main motor power (continue/15min.)

kW

5.5/7.5

Tailstock

Sleeve dia./stroke

mm

Φ80/80

Live spindle structure top taper

MT No.

3

Sliding Base

Angle of inclination

DEG

45°

Shift motion   X/Z

mm

140/370

Rapid move speed  X/Z

mm/min

12/16

Servo motor torque  X/Z

Nm

7/11(FANUC system)

Ball-screw dia.  X/Z

mm

Φ32/Φ32

Turret

Tool digit



8

Tool size(turnery/bore hole)

mm

20×20/Φ32

Other

Power

kVA

30

Size(L*W*H)

mm

2400× 1500×1685

Total weight

kg

2500

Company Profile

 We can manufacture various machine tools, such as universal lathes, CNC lathes, vertical drilling machines and machining center.

Our company was established in 1985 with fixed assets exceeding RMB300 million. Our company has independent import and export rights authorized by the State Foreign Economic Trade Committee. Our products are exported to over sixty countries and regions around the five continents. Our products had been given the golden praise of "Mexico-Chinese Practical Economic and Product Trade Exhibition" and the "19th International Golden Star for Excellence in Corporate Appearance and Quality Award".

We are devoted to the innovation of technology and management, and have formed strict, practical and continuously innovative business culture. With the approval of technology committee, our company established a R&D center, which organizes the planning, development and innovation of multiple products, and has developed seven series, over twenty types and over sixty grades of products. The advantages of our CNC lathes are advanced structures, novel types, high quality, high performance and low prices.

Our company was awarded the honors of "Star Company in China" and "Attaching Importance to the Contract, Keeping the Prestige" and our products were awarded titles of "High Quality Products in Guangdong Province" and "Famous Brand Products in Guangzhou City".
