• Honeybee gantry type hypertherm stainless steel cutting machine

Honeybee gantry type hypertherm stainless steel cutting machine

dual drive, solid structure
strong, made of thick steel
compact size
competitive on function and price

Product Details

Quick Details

Description

Name

Honeybee Eco-series Gantry CNC Cutting Machine

Model

HBS-3000×6000×1C+1A

Structure

Gantry, dual drive

Track span & Guide rail

3000×6000mm

Effective cutting size

2400×4500mm

Transmission

Longitudinal and Transversal main trolleys: rack & pinion                             Transversal slave trolley: steel belt

Tube Transmission

Transveral: Industrial plastric drag chain;

Longitudinal: Hanging pulleys or earthing drag chain

Cutting thickness

Oxy-fuel 6-150 mm;

Plasma: depends on plasma capacity;

Torch No.

One flame torch, one plasma torch station

Torch height control

Capacitance auto THC for oxy-fuel cutting

Arc voltage auto THC for plasma cutting, anti-collision

Servo system

AC servo systems

CNC system

VUP or HBCNC

Speed regulation range

0--12 m/min

Cutting fuel

Oxy-fuel: Oxygen +Acetylene/Propane

Plasma: Depends on plasma power source require

File transmission

USB

Accuracy

±0.5mm



II. CNC System: VUP or HBCNC



Display: high resolution, colorful LCD



CPU: Industrial ARM9 chip



File storage: electronic memory disc, 512M



RAM: 256M



External interface: USB



Keyboard: PCB filmed keyboard, PS2 interface, OMRON buttons.



Case: All steel structure, shielded completely, anti-electromagnetic



radiation, anti-interfere, anti-static.



CNC System Features:



Control axis: two, three is optional.



Control accuracy: ± 0.001mm



Max impulse frequency: 200KHz



Max running speed: 15m/min.



Max program line: 100 thousand lines



Single program max : 1M



Work power supply: DC +24V



III. Plasma Power Source: from 45A to 200A main plasma brands.



Hypertherm



Esab



Victor



Kjellberg



PLA



IV. Program software: FastCAM professional edition



Overview of the machines:













Applications of the cnc cutting machines:

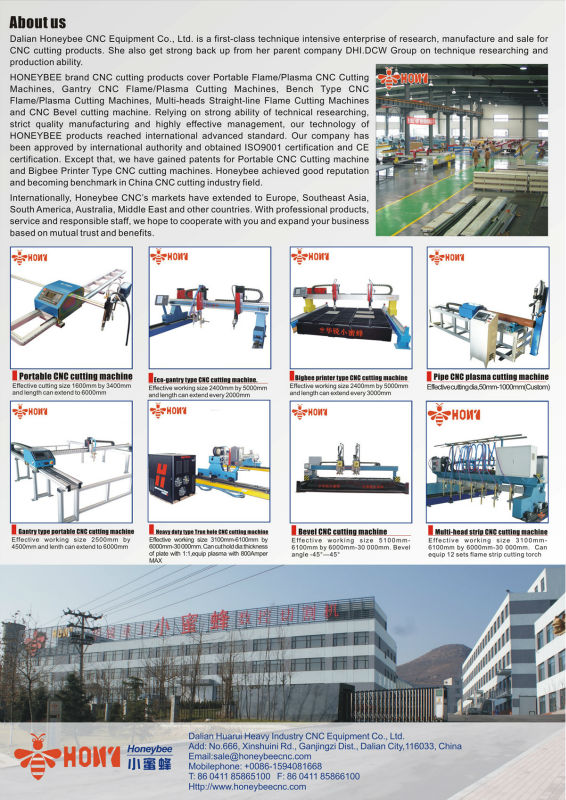

Company Information





Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class



technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability



and production ability of DHI-DCW Group Co., Ltd. Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma



CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines, Bench Type CNC Flame/Plasma Cutting Machines, and



Multi-head Straight-line Flame Cutting Machines. Relying on strong ability of technical researching, strict quality manufacturing and



highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has



firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC



Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.With



the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and



effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one



of Chinese leading cutting equipment manufacturers. Nowadays, our markets have extended to Europe, Southeast Asia, South



America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales



members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.



Company Profile

Dalian Huarui Heavy Industry CNC Equipment Co., Ltd., a subsidiary of Dalian DHI-DCW Group Co., Ltd., is a first-class technique intensive enterprise of research, manufacture and sale by taking advantage of first grade technique researching ability and production ability of DHI-DCW Group Co., Ltd. Our HONEYBEE brand CNC cutting products include Portable Flame/Plasma CNC Cutting Machines, Gantry CNC Flame/Plasma Cutting Machines, Bench Type CNC Flame/Plasma Cutting Machines, and Multi-head Straight-line Flame Cutting Machines. Relying on strong ability of technical researching, strict quality manufacturing and highly effective management, our technology of all HONEYBEE products reach international advanced standard. Our company has firstly passed the evaluation of ISO9001 certification and CE certification. Especially, we have attained a patent for Portable CNC Cutting machine. In Chinese cutting machinery market, Honeybee has become very famous in the Portable CNC cutting field.With the belief of rejuvenating national cutting machine manufacturing industry, combining strong the ability of technical research and effective management, focusing on the talented and technical recreation, we make all efforts to build an international brand as one of Chinese leading cutting equipment manufacturers. Nowadays, our markets have extended to Europe, Southeast Asia, South America, Australia, the Middle East and other countries and regions with professional sales service and responsible sales members. We are always looking forward to business cooperation with overseas customers based on mutual benefits.
