• High quality welder for car body repair

High quality welder for car body repair

Packaging Details: carton with plywood pallet
Delivery Detail: 10 days after order confirmed

Product Details

Quick Details Parameter

Condition : New
Place of Origin : China (Mainland)
Brand Name : Doyo
Model Number : DW8800
Rated Capacity : 22KVA
Rated Duty Cycle : 5%
Max. Welding Thickness : 1.5+1.5mm
Dimensions : 450X710X940mm
Weight : 70kgs
Usage : carbody repair, battery charging, boosting
Voltage : 220/380v
Warranty : 2 year warranty
color : red & black, blue & grey .

Description

welder for car body repair



Main feature



1.Latest electronic components and Micro-processor control with digital display.
2.Solid state relay replaces AC contactor, getting rid of the after services of contact problems.
3.90V-270V wide voltage switch power for control system avoid the problems of control transformer.
4.Touch film switch replace key switch and knob sunitch,making machine more reliable.
5.Automatic control welding time adjustable at 0.1s-9.9s.
6.Bolt output connector of spot weld suitable for 2 or 3 welding guns being connected at same time.

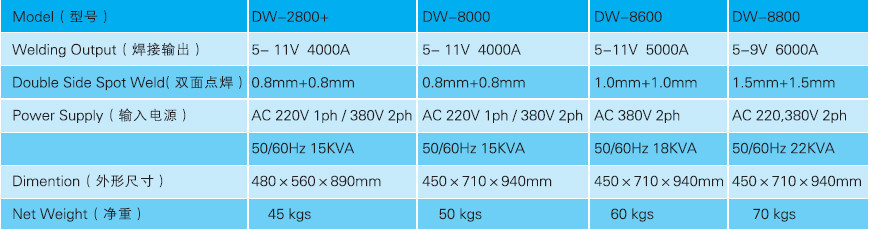

Tecnical data











Multi-function welder for car body repair



Main feature



1.Break traditional design, specially suitable for garage workshop.

2.Integrated spot welder, arc welder, battery charger, vehicle booster and melt welder in one welder.
3.Realize spot weld, washer weld, pulling weld, shrinking, electrodeweld,melting weld for copper wires and steel
       wires, battery charging and vehicle starting.

4.Adjustable welding current of arc welder specially suitable for thin steel plate.

5.Latest electronic components and micro-processor control.system
6.90V-270V wide voltage switch control power replace control transformer.
7.Solid state relay replaces AC contactor, making machine more reliable and durable.
8.Automatic control welding time adjustable at 0.1s-9.9s and charging time adjustable at 1-99 hours.
9.Output connector of spot weld suitable for 2 or 3 welding guns connection at same time.

10.Both 1ph 220V power and 2phs 380V power supply can be used by user`s selection.





Tecnical data



Model

DW-5800

DW-6800

DW-7800

Output of spot weld

2-10V 400-4000A

2-10V 400-5000A

2-10V 400-6000A

Double sides spot weld

0.8mm+0.8mm

1.0mm+1.0mm

1.2mm+1.2mm

Output of electric weld

40-60V,  60-160A

40-65V,  90-180A

40-65V,  100-200A

Welding rod Dia.

2.0-3.2mm

2.0-3.2mm

2.0-4.0mm

Arc weld duty

20%

20%

20%

Spot weld duty

5%

5%

5%

Max. starting Amp

600A

700A

800A

Max. charging Amp

680A

80A

100A

Charging Voltage

12V,  24V

12V,  24V

12V,  24V

Power supply

AC 220V 1ph, 380V 2ph  50/60Hz

AC 220V 1ph, 380V 2ph  50/60Hz

AC 220V 2ph, 380V 2ph  50/60Hz

Input Power



15KVA

18KVA

20KVA

Dimension

450×620×940mm

450×620×940mm

450×620×940mm

Net weight

60kgs

66kgs

72kgs

Company Profile

  Dalian Doyo Autotools Co., Ltd. (Doyo) is engaged in the production, research and development, import and export of garage equipment, car decorating and repairing service, and steel construction engineering.
  As a member of China Automotive Maintenance Equipment Association, Doyo was founded in 1997 and our headquarters is situated at a beautiful seaport city - Dalian, covering a land area of 5000sqm and a floor area of 3000sqm.
  Doyo has set up a modern management system, passed ISO 9001:2000 quality management system and attained CE approval for our wheel aligners and spot welders. Many special talented people on technical research, product design and production in mechanism, electronics and computer fields make sure our technical improvement and the quality control in accordance with most advanced and professional level based on the principle of "technical as development base, progress depend on science, and constantly bring forth".
  Doyo mainly produces computer wheel aligners and multi-functions spot welders for car body repair and on-car brake disc lathes at Dalian factory. We also cooperate with Yingkou factory to produce car lifts, tire changers, wheel balancers, fuel injector cleaners and analyzers. Their accuracy, reliability, stability and practicability have been entirely recognized by thousands of end users in many countries for the past 10 years. Doyo's products have been exported to Japan, Korea, Russia, the Middle East, Southeast Asia, Africa, America and Europe.
