• High-precision professional CNC lathe 6136

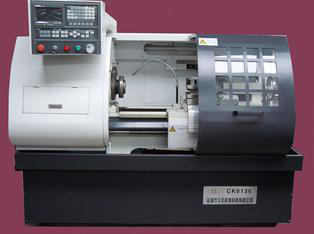

High-precision professional CNC lathe 6136

CK6136S CNC high precision horizontal Lathe Machine machine toolS Please contact:haishiqi12@yeah.net

Product Details

Quick Details

Description

Item
CK6136
Swing over bed
360mm
Swing over carriage
180 mm
Max. length of workpiece
650mm
Max. cutting length of workpiece
550mm
Type of spindle
C6
Diameter of spindle hole
Φ52
Spindle Taper
MT 6
Range of spindle speed(stepless)
40-1600r/min
Speed of longitudinal rapid movement
8m/min
Speed of cross rapid movement
5m/min
Max. travel of longitudinal
200mm
Max. travel of cross
650mm
Min. input unit
0.001mm
Tool post
Vertical four-station
Max. size of tool
20×20mm
Diameter of tailstock spindle
75mm
Taper of tailstock spindle
MT 4
Max. travel of tailstock spindle
100mm
X/Z towards motor torque
3.6/4.7Nm
Power of main motor
4KW
Power of cooling pump motor
90W
Overall dimensions(L*W*H)
2100×1300×1550mm
Net Weight
1500kg
