High Quality Oil Drilling Pipes,Internal-external Upset Drill Pipes(Grade S135)

1. High precision in size and shape

2. Good low temperature toughness

3. Excellent comprehensive mechanical properties

4. High connection strength and sealability

5. Large inside diameter of tool joint

6.High  torque resistance

7. High fatigue strength and long fatigue life

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Application : Drill Pipe
Secondary Or Not : Non-secondary
Machine Type : Drilling Tool
Material : Carbon Steel

Description

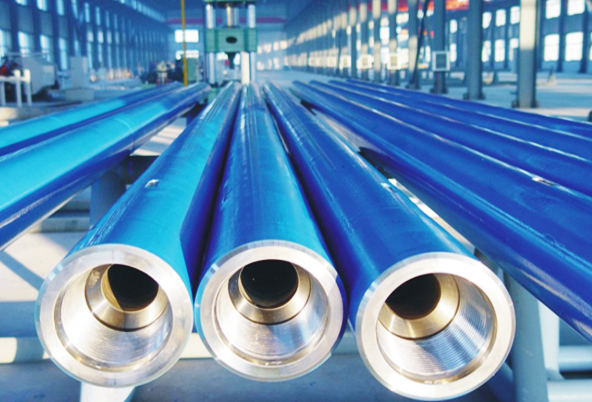

      The drill pipe is the essential part of the drilling string, its main function is to deepen the borehole, transfer torque and form the drilling fluid circulation channel.

      Drill pipes from 2 3/8” to 6 5/8” are manufactured strictly conform to the requirements of API Spec 5D, API Spec 7, RP 7G. At the same time, PDM can design and manufacture special drilling tools required by customers.



Parameters

钻杆 Drill Pipe 钻杆接头 Tool Joint
管体外径
Tube OD
(in mm)
名义重量
Weight
Designation
(lb/ft)
钻杆壁厚
Wall
Thickness
in mm
钢级
Grade
加厚形式
Upset
Type
扣型
Conne
ction
外径
OD
(in mm)
外螺纹内径
Inside
Dia.of Pin
(in mm)
外螺纹外径长度
Outside of Pin
(in mm)
内螺纹外径长度
Outside of Pin
(in mm)
2 3/8  60.32 6.65 0.28  7.11 E EU NC26 3.375  85.7 1.750  44.5 7.000  177.80 8.000  203.20
2 3/8  60.32 6.65 0.28  7.11 XG EU NC26 3.375  85.7 1.750  44.5 7.000  177.80 8.000  203.20
2 3/8  73.02 10.40 0.362  9.19 E EU NC31 4.125  104.8 2.125  54.0 7.000  177.80 9.000  228.60
2 3/8  73.02 10.40 0.362  9.19 XG EU NC31 4.125  104.8 2.125  50.8 7.000  177.80 9.000  228.60
2 3/8  73.02 10.40 0.362  9.19 S EU NC31 4.375  111.1 1.625 41.3 7.000  177.80 9.000  228.60
3 1/2  88.90 9.50 0.254 6.45 E EU NC38 4.750  120.7 2.688  68.3 8.000  203.20 10.500  266.70
3 1/2  88.90 9.50 0.254 6.45 E EU NC38 4.750  120.7 2.688  68.3 8.000  203.20 10.500  266.70
3 1/2  88.90 13.30 0.368 9.35 X EU NC38 5.000  120.7 2.562  65.1 8.000  203.20 10.500  266.70
3 1/2  88.90 13.30 0.368 9.35 G EU NC38 5.000  120.7 2.438  61.9 8.000  203.20 10.500  266.70
3 1/2  88.90 13.30 0.368 9.35 S EU NC38 5.000 120.7 2.125  54.0 8.000  203.20 10.500  266.70
3 1/2  88.90 15.50 0.449 11.40 E EU NC38 5.000 120.7 2.563  65.1 8.000  203.20 10.500  266.70
3 1/2  88.90 15.50 0.449 11.40 X EU NC38 5.000 120.7 2.438 61.9 8.000  203.20 10.500  266.70
3 1/2  88.90 15.50 0.449 11.40 G EU NC38 5.000 120.7 2.125  54.0 8.000  203.20 10.500  266.70
3 1/2  88.90 15.50 0.449 11.40 S EU NC40 5.500 139.7 2.250  57.2 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 E IU NC40 5.250 133.4 2.812  71.4 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 E EU NC46 6.000 152.4 3.250  82.6 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 X IU NC40 5.250 133.4 2.688  68.3 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 G IU NC40 5.500 139.7 2.438  61.9 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 XG EU NC46 6.000 152.4 3.250  82.6 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 S EU NC46 6.000 152.4 3.000  76.2 7.000  177.80 10.000  254.00
4    101.60 14.00 0.330 8.38 S IU NC40 5.500 139.7 2.000  50.8 7.000  177.80 10.000  254.00
4 1/2  114.30 13.75 0.271 6.88 E IU NC46 6.000 152.4 3.375  85.7 7.000  177.80 10.000  254.00
4 1/2  114.30 13.75 0.271 6.88 E EU NC50 6.625 168.3 3.750  95.3 7.000  177.80 10.000  254.00
-----------------------------------------------------------------------------------
4 1/2  114.30 16.60 0.337 8.56 E EU NC50 6.625 168.3 3.750  95.3 7.000  177.80 10.000  254.00
4 1/2  114.30 16.60 0.337 8.56 XG EU NC50 6.625 168.3 3.750  95.3 7.000  177.80 10.000  254.00
4 1/2  114.30 16.60 0.337 8.56 S EU NC50 6.625 168.3 3.500  88.9 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 E EU NC50 6.625 168.3 3.625 92.1 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 XG EU NC50 6.625 168.3 3.500 88.9 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 S EU NC50 6.625 168.3 3.000 76.2 7.000  177.80 10.000  254.00
4 1/2  114.30 16.60 0.337 8.56 E IEU NC46 6.250 158.8 3.250 82.6 7.000  177.80 10.000  254.00
4 1/2  114.30 16.60 0.337 8.56 XG IEU NC46 6.250 158.8 3.000 76.2 7.000  177.80 10.000  254.00
4 1/2  114.30 16.60 0.337 8.56 S IEU NC46 6.250 158.8 2.750 69.9 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 E IEU NC46 6.250 158.8 3.000 76.2 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 X IEU NC46 6.250 158.8 3.000 76.2 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 G IEU NC46 6.250 158.8 3.000 76.2 7.000  177.80 10.000  254.00
4 1/2  114.30 20.00 0.430 10.92 S IEU NC46 6.250 158.8 3.000 76.2 7.000  177.80 10.000  254.00
5    127.00 19.50 0.362 9.19 E IEU NC50 6.625 168.8 3.750 95.3 7.000  177.80 10.000  254.00
5    127.00 19.50 0.362 9.19 X IEU NC50 6.625 168.8 3.500 88.9 7.000  177.80 10.000  254.00
5    127.00 19.50 0.362 9.19 G IEU NC50 6.625 168.8 3.250 82.6 7.000  177.80 10.000  254.00
5    127.00 19.50 0.362 9.19 S IEU NC50 6.625 168.8 2.750 69.9 7.000  177.80 10.000  254.00
5    127.00 19.50 0.362 9.19 E IEU 5 1/2FH 7.000 177.8 3.750 95.3 8.000  203.20 10.000  254.00
5    127.00 19.50 0.362 9.19 XG IEU 5 1/2FH 7.000 177.8 3.750 95.3 8.000  203.20 10.000  254.00
5    127.00 19.50 0.362 9.19 S IEU 5 1/2FH 7.250 184.2 3.500 88.9 8.000  203.20 10.000  254.00
5    127.00 25.60 0.500 12.70 E IEU NC50 6.625 168.3 3.500 88.9 7.000  177.80 10.000  254.00
5    127.00 25.60 0.500 12.70 X IEU NC50 6.625 168.3 3.000 76.2 7.000  177.80 10.000  254.00
5    127.00 25.60 0.500 12.70 G IEU NC50 6.625 168.3 2.750 69.9 7.000  177.80 10.000  254.00
5    127.00 25.60 0.500 12.70 E IEU 5 1/2FH 7.000 168.3 3.500 88.9 8000  203.20 10.000  254.00
5    127.00 25.60 0.500 12.70 X IEU 5 1/2FH 7.000 177.8 3.500 88.9 8000  203.20 10.000  254.00
5    127.00 25.60 0.500 12.70 G IEU 5 1/2FH 7.250 184.2 3.500 88.9 8000  203.20 10.000  254.00
5    127.00 25.60 0.500 12.70 S IEU 5 1/2FH 7.250 184.2 3.250 82.6 8000  203.20 10.000  254.00
5 1/2  139.70 21.90 0.361 9.17 E IEU 5 1/2FH 7.000 177.8 4.000 101.6 8000  203.20 10.000  254.00
5 1/2  139.70 21.90 0.361 9.17 X IEU 5 1/2FH 7.000 177.8 3.750 95.3 8000  203.20 10.000  254.00
5 1/2  139.70 21.90 0.361 9.17 G IEU 5 1/2FH 7.250 184.2 3.500 88.9 8000  203.20 10.000  254.00
5 1/2  139.70 21.90 0.361 9.17 S IEU 5 1/2FH 7.500 190.5 3.000 76.2 8000  203.20 10.000  254.00
5 1/2  139.70 24.70 0.415 10.54 E IEU 5 1/2FH 7.000 177.8 4.000 101.6 8000  203.20 10.000  254.00
5 1/2  139.70 24.70 0.415 10.54 XG IEU 5 1/2FH 7.250 184.2 3.500 88.9 8000  203.20 10.000  254.00
5 1/2  139.70 24.70 0.415 10.54 S IEU 5 1/2FH 7.500 190.5 3.000 76.2 8000  203.20 10.000  254.00
6 5/8 168.28 25.20 0.330 8.38 E IEU 6 5/8FH 8.000 203.2 5.000 127.0 8000  203.20 11.000  279.40
6 5/8 168.28 25.20 0.330 8.38 X IEU 6 5/8FH 8.000 203.2 5.000 127.0 8000  203.20 11.000  279.40
6 5/8 168.28 25.20 0.330 8.38 G IEU 6 5/8FH 8.250 209.6 4.750 120.7 8000  203.20 11.000  279.40
6 5/8 168.28 25.20 0.330 8.38 S IEU 6 5/8FH 8.500 215.9 4.250 108.0 8000  203.20 11.000  279.40
6 5/8 168.28 27.70 0.362 9.19 E IEU 6 5/8FH 8.000 203.2 5.000 127.0 8000  203.20 11.000  279.40
6 5/8 168.28 27.70 0.362 9.19 XG IEU 6 5/8FH 8.250 209.6 4.750 120.7 8000  203.20 11.000  279.40
6 5/8 168.28 27.70 0.362 9.19 S IEU 6 5/8FH 8.500 215.9 4.250 108.0 8000  203.20 11.000  279.40

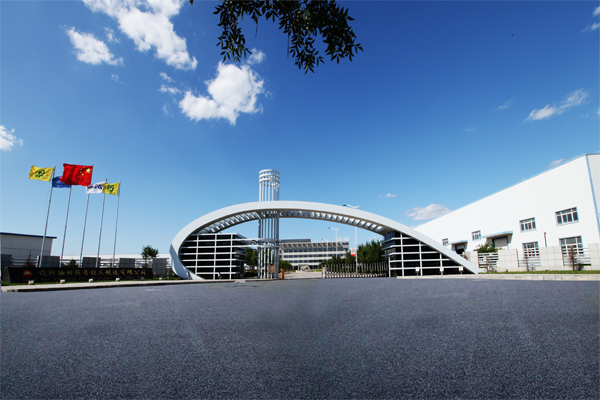

Company Profile

 Pipe & Drilling Tools Manufacture Co., Ltd. is a petroleum drilling tools manufacturing company with the capacity of drilling tools designing, manufacturing,repairing and inspecting.

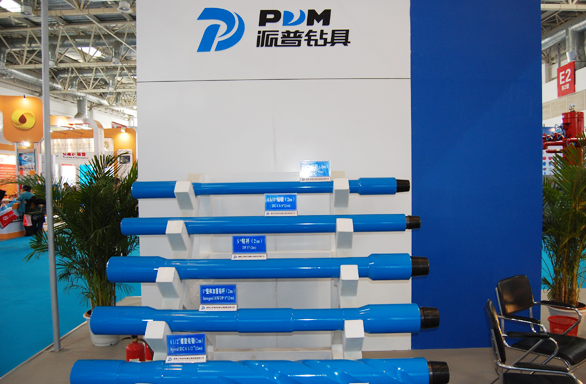

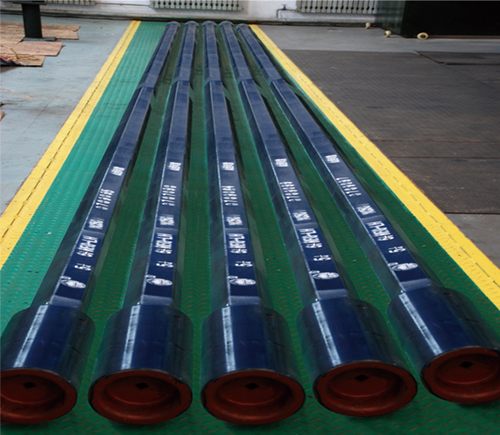

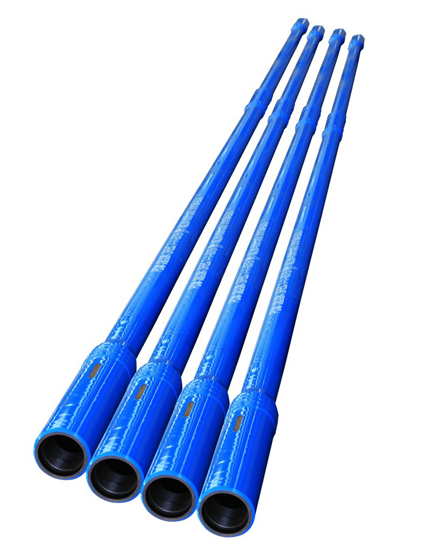

      PDM produces all kinds of drilling tools, such as drill pipes, tool joints, upsetting drill pipes, slick drill collars, spiral drill collars, integral heavy weight drill pipes, square or hexagon kellies, non-magnetic drilling tools, lifting subs, etc. At the same time it owns appropriative tubular internal plastic coating production line. PDM can manufacture products covered in API Spec 5DP, API Spec 7-1, RP7G, DS-1 or NS-1, and also other special drilling tools designed or required by customers.

      With the complete production line, PDM is one of the few integrative manufacturing companies which can arrange the processes of tool joints, drill pipe upsetting, heat treating, inertial friction welding, hardbanding and inner plastic coating.

      PDM has a complete R&D system and a reliable system of quality assurance. It gained API Spec Q1 and ISO9001 qualifications, and authority to use the API monograms of Spec 7-1 and Spec 5DP. The company’s products have passed the inspection of the China National Quality Supervision, Testing and Inspection Center of Oil Tubular Goods. The products are widely used in many Chinese oil fields and more than 20 countries, such as Iran, America, and France, etc.

      With the core management commitments of ‘respectful, honest, innovational, customer focus’, PDM is heartily willing to communicate and cooperate with all circles from domestic and oversea engaged in manufacturing and researching of oil drilling tools.
