  • Hammer Crusher

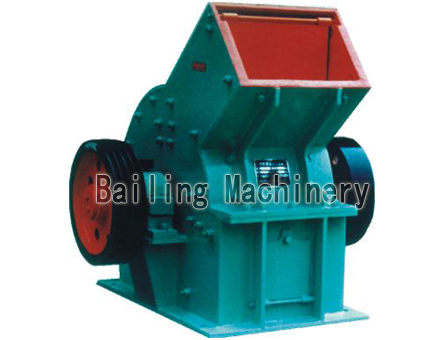

Hammer Crusher

The hammer crusher(hammer mill) crushes through the collisions between high-speed hammer and materiasl.

Product Details

Quick Details

Description

 Name

Max. feeding size(mm)

Output size (mm)

Capacity
(t/h)


Motor Power(kw)

Weight (kg)

PC400×300

≤100

≤10

5-10

11

800

PC600×400

≤120

≤15

10-25

18.5

1500

PC800×600

≤120

≤15

20-35

55

3100

PC1000×800

≤200

≤13

20-40

115

7900

PC1000×1000

≤200

≤15

30-80

132

8650

PC1300×1200

≤250

≤19

80-200

240

13600


The hammer crusher(hammer mill) crushes through the collisions between high-speed hammer and materiasl. The hammer crusher(hammer mill) has good quality features like simple structure, high reduction ration, high efficiency, and etc. The PC hammer crusher(hammer mill) is suitable for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.

Hammer Crusher

Operating principle of Hammer Crusher:
The motor drives the rotor rotated of the hammer crusher at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working chamber of hammers, they are crushed by the rotating hammers with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, while the large size products are brought back to the crushed area by the hammers for being recrushed until they reached the required size.

Company Profile

Henan Bailing Machinery Co., ltd is a professional manufacturer of mining machinery in China. Having 44,000 square meters factory, we take crushers, beneficiation equipments, mills, screens, cement production line and dryers as our main products, which are sold to more than 30 countries and regions in Africa, Middle East, North and South America, South Asia, Hong kong and Taiwan regions.
Taking quality as the soul of our company, we adopt advanced technology and bulid a strict quality control system. And we provide not only good quality products, but also strong tech assistance from design, production to installation, commissioning and debugging.
