• HY-QT5-20 Brick Making Machine

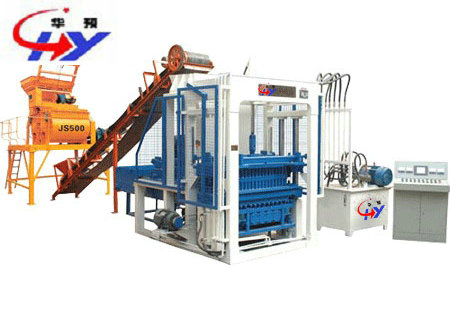

HY-QT5-20 Brick Making Machine

A multi-purpose machine, completely meet market demand, the greatest degree of users reduce investment risks.

Product Details

Quick Details

Description

Production Scale

Product

Specifications

Bricks/Mould

Bricks/Shift

Bricks/Year

Standard bricks

240*115*53(mm)

30

43,200

12,960,000

Hollow Block

390*190*190(mm)

5

7,200

2,160,000

Multi-hole brick

240*115*90(mm)

16

23,040

6,912,000

Brick pathways (monochrome)

200*100*60(mm)

16

23,040

6,912,000





Technical parameters

Pallet size

1030 * 600 * 25mm (bamboo pallet)

Molding cycle

15-20 seconds

Total power

27.5KW

Dimension (L *W *H)

2400*2380 *2570mm

Host weight

5.5T



Main Use
1)Cement produces various products, hollow block, solid standard bricks, vias brick, brick pathways, square brick road shoulder, Luoyandan, river brick, the terminal bricks, insulation layer, lawn brick.
2)A multi-purpose machine, completely meet market demand, the greatest degree of users reduce investment risks.

Technical Features
1)Classic vibration mode, particularly suitable for production of high-strength blocks, such as standard bricks .Short molding cycles, and higher efficiency.
2)Vibration machine for efficient vibrator, exciting force powerful, the density effect of better products.
3)Forming large area, can produce a variety of cement products, a wide range of production.
4)Compulsory mechanical positioning, infantry expected rapid, uniform and manufactures precision, consistency, good.
5)PLC automatic control systems, interactive user interface, the control system, security configuration logic control, production procedures and fault diagnosis display.
6)The low cost of production, raw materials, make full use of sand, stone powder, flour, coal ash, slag, and other residue.
