• HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY

HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY

1.Capacity from 0.5t to 20t
2.Automatic double-pawl braking system
3.Gear: by adopting Japanese technology

Product Details

Quick Details

Description

PRODUCT INFORMATION

HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY

 characteristics are to make the chain block have high ability and security, high agility, and this greatly reduce work intension and have long life time.

Feature of:HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY

1.Gear: They are innovated symmetrical arrayed high speed synchronous gears, and are made of international standard gear steel. Compared with common gears, they are more wearable and steadier, and more laborsaving.
2.Chain:Adopt high strong chain and high precision welding technology, meet ISO3077-1984 international standard; fit for gusty overload work conditions; bring your hands a better feeling; multi-angle operation. HSZ-K chain hoist  HSZ-K chain hoist  hsz-k chain hoist  hsz-k chain hoist  hsz-k chain hoist
3.Hook: Made of high-class alloy steel, it has high strength and high security by using the new design. HSZ-K chain hoist HSZ-K chain hoist  HSZ-K chain hoist  hsz-k chain hoist  hsz-k chain hoist  hsz-k chain hoist
4.Limit Switch: Using limit switch component in design to protect the chain and ensure the security. HSZ-K chain hoist  HSZ-K chain hoist  hsz-k chain hoist  hsz-k chain hoist  hsz-k chain hoist
5.Components: The main components are all made of high-class alloy steel, with high precision and security. HSZ-K chain hoist  HSZ-K chain hoist  hsz-k chain hoist  hsz-k chain hoist  hsz-k chain hoist
6.Framework: Slight design and more beautiful; with less weight and smaller work area.
7.Plastic Plating: Adopt advanced plastic plating technology inside and outside, it looks like a new one after years of operation.
8.Encloser:
Made of high-classed steel, more firm and dexterous.

9.Capacity : Ranges from 0.5 ton to 5ton

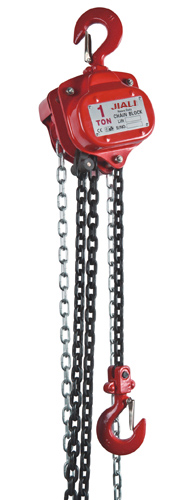

Picture of:HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY



Specification:HSZ MANUAL CHAIN HOIST/ CHAIN BLOCK WITH 3M LONG CHAIN 20MTS CAPACITY

Rated Capacity

Lift

(M)

Load Chain

Hand Chain

Weight

Number of Falls

Minimum Distance Between Hooks

Force Required to Lift Rated Capacity

Dimensions from Drawing (inches)



ft

mm

mm

lbs



in

lbs

A

B

C

1/2 ton

10

6.3 x 19.1

5 x 22.8

24

1

12.4

53

5.91

6.06

12.4

1/2 ton

20

6.3 x 19.1

5 x 22.8

24

1

12.4

53

5.91

6.06

12.4

1 ton

10

6.3 x 19.1

5 x 22.8

28

1

12.4

73

5.79

6.18

12.4

1 ton

20

6.3 x 19.1

5 x 22.8

24

1

12.4

73

5.79

6.18

12.4

1.5 ton

10

7.1 x 21

5 x 22.8

31

1

13.39

75

5.79

6.85

13.39

1.5 ton

20

7.1 x 21

5 x 22.8

47

1

13.39

75

5.79

6.85

13.39

2 ton

10

7.9 x 23

5.5 x 23.6

48

1

14.96

75

7.05

8.03

14.96

2 ton

20

7.9 x 23

5.5 x 23.6

48

1

14.96

75

7.05

8.03

14.96

3 ton

10

7.1 x 21

5.5 x 23.6

51

2

18.7

77

5.79

8.11

18.7

3 ton

20

7.1 x 21

5.5 x 23.6

51

2

18.7

77

5.79

8.11

18.7

5 ton

10

9 x 27

5.5 x 23.6

90

2

25

86

7.05

10.35

25

5 ton

20

9 x 27

5.5 x 23.6

51

2

25

86

7.05

10.35

25

10 ton

10

9 x 27

5.5 x 23.6

172

4

29.92

90

7.05

14.45

29.92

10 ton

20

9 x 27

5.5 x 23.6

260

4

29.92

90

7.05

14.45

29.92
