  • HSD65 Special drive CNC lathe

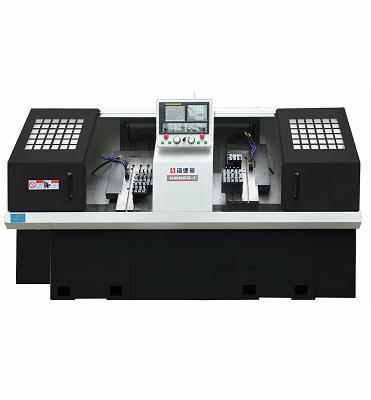

HSD65 Special drive CNC lathe

This lathe is particular for long axis parts. Bed and body is integrate,high rigidity and shock resistance. HIWIN guide way,fast travel,consistent accuracy and long service life. Convey chip from middle,convenient. Ex-large coolant tank,to ensure good cooling performance. Please contact us:zhuxiaochen124@126.com

Product Details

Quick Details

Description


HSD65 Special drive CNC lathe

1.This lathe is particular for long axis parts.

2.Bed and body is integrate,high rigidity and shock resistance.

3.HIWIN guide way,fast travel,consistent accuracy and long service life.

4.Convey chip from middle,convenient.

5.Ex-large coolant tank,to ensure good cooling performance.

Parameter



Item

Detail

Unit

Specification

Remark

Processing ability

Max. swing diam. over bed

mm

Φ350



Max. swing diam. over slide

mm

Φ160











Spindle

Max. bar through

mm

Φ60



Spindle speed

r / min

2000







Clamping

Clamping type



Hydraulic collet











Turret

Turret type



Gang type



Tool cross section

mm

23



X/Z axis

 axis/ axis travel

mm

280/280

(when two spindle box 600)

 axis/ axis rapid travel

mm /min

12/15



Motor

Spindle motor

kW

5.5

Futian

X/Z axis servo motor torque

Nm

6



Coolant pump

KW

90W(two pump)



Two spindle



mm

Min380 max600



Weight

Net weightapproximate

kg





Machine size(length×width×height)

mm

2980X1550X1820



Company Profile

    Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.

    Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.

    Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
