• HFJ-32F computerized quilting machines

HFJ-32F computerized quilting machines

HFJ-32F computerized quilting machines are sewing equipments for producing all kinds of bedding products.

Product Details

Quick Details

Description

Model

HFJ-26F

HFJ-28F

HFJ-30F

HFJ-32F

HFJ-35F

Quilt Size

2.6m×2.8m

2.8m×3.2m

3.0m×3.2m

3.2m×3.5m

3.5m×3.5m

Needle Drop Size

2.4m×2.6m

2.6m×3.0m

2.8m×3.0m

3.0m×3.3m

3.3m×3.3m

Machine Needle

SINGER / SCHMETZ  MR5 18~21#

Sewing-thick

1200 g/m²

1000 g/m²

Sewing Speed

500~2200 SPM

500~2000 SPM

Stitch Length

2 ~ 7 mm

Dimensions

(L×W×H)

5.0 m×3.6 m

×1.4m

5.4 m×3.8 m

×1.4m

5.4 m×4.0 m

×1.4m

5.8 m×4.2 m

×1.4m

5.8 m×4.5 m

×1.4m

Power

AC 220V, 50Hz, 1.5Kw

Weight

1800 Kg

1900 Kg

2000 Kg

2200 Kg

2300 Kg


O  Adopt exact spline on main shaft to drive, and the linear guide orbit device are used to move sewing head, this way not only enhance precision of moving, but also reduce noises.

O  Use industrial control system to keep the machine run reliably, main shaft is driven by inverter, movement of X axis and Y axis by step motor driver.

O  Set latest industrial control mainboard, capable of copying pattern and other files from USB-disk,and enable to use USB-disk reboot while other disks in computer can not work.

O  Capable of copying pattern and other files from USB-disk,and enable to use USB-disk plug and play.

O  Its convenient to copy or delete pattern files by pattern management function.

O  With function of pattern viewing and rotating or mirroring pattern, capable of reading patterns of variety forms.

O  Capable of counting output, and reboot to zero.

O  Both forward and backward modes for retreat quilting, overlap stitch distance can be treated specially, and the stitch length can be changed.

O  Trace seeking function makes needle quickly located in its position.

O  Display quilting status at any time and prompt operation.

O  Two quilting methods: forward and backward, and offer press buttons like forward, backward and needle thread etc.

O  Convenient in defining and revising frame range and pattern size with setting and modifying functions.

O  Offset function makes it available to join separated patterns accurately.

O  Accompanied by change of defining pattern range and space, pattern size scales automatically.

O  Use hydro-oiling concentrative sets for supplying oil to sewing-head and machine pedestal. Its convenient, brief and very credible.

O  Supply two sets of pressing-foot device to sewing-head for your option in vary conditions. Its very easy to change them.

O  Single head, single needle, double-line locked style, big rotating shuttle.

O  Power waste less than 1Kw.

O  Self-detect breaking thread function, needle stays at upper position at pause time and machine stop working while thread breakage automatically.

O  Testing system function, can detect the machine working status quickly, it used for repairing machine.

O  Main shaft self-detect function effectively avoid the accident of breaking quilt, with protection function against exceeding in limit range;

O  Return to original point automatically or manually, it will reduce unnecessary  stops.

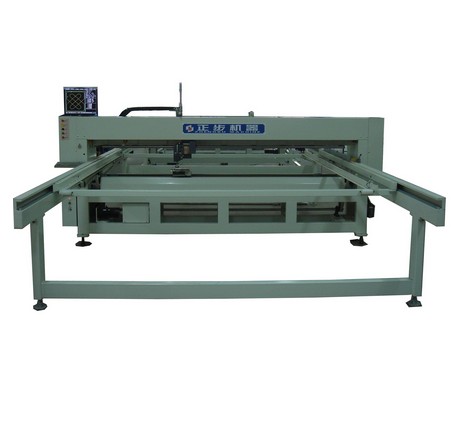

HFJ-32F machine

Company Profile

Suzhou Zhengbu machinery Co., Ltd. is a high-tech enterprise which integrates in research, develop, manufacture and sales of products including mechanics and electronics. It produces computerized quilting machines professionally. The factory located in Hedong Industrial Park of Wuzhong Economy District and at G15w highway Wuzhong exit. It has convenient facility.
Suzhou Zhengbu machinery Co., Ltd. was established in 1999. It always persists in scientific and technical innovation. And it inherits integrity, honesty, harmony, and progress spirit of enterprise and considers it as the root of development. Company attaches importance to education for all-around development of all the staff, continuously introduces into and brings up professional person who Zhengbu needs. At the same time, it pays attention to intellectual property rights protection, and put patent strategy into practice in order to enhance science and technology of products.

Zhengbu emphasizes people-oriented, considers quality and sevice of products as life, and develops by researching latest products. Nowadays, it comes into being a technological, innovative and scale of enterprise which produces computerized quilting machines professionally. Zhengbu had obtained ISO9001 Quality Management System Certification. And Computerized Quilting Machine Series produced by Zhengbu have already got the CE Certification.

Now both technology and sales of Zhengbu are on top in domestic market. Zhengbu brand had formed a famous brand; its good credit is as well-known as all of our customers. Our products are not only very popular in all over the country but also exported 30 countries and districts like Europe, America and South East Asia.

In order to provide better service to user, Zhengbu sets up offices in other areas and further improves service system in these areas. Company also constructs dealer net in India, Pakistan,Russia,Korea, and so on. Zhengbu own its efficient working team who specially supply after-sales services that let you light-hearted.
