HFBBZ170 Glassfiber Rebeaming Machine

HFBBZ170 Glassfiber Rebeaming Machine, load 4 beams from warping machine on beam frame, a motor on frame drive the 4 beams to wind yarns into one loom beam at even speed with proper tension.

Product Details

Quick Details Parameter

Loom beam dia.: : ?550-?1016mm
Warp beam dia.: : ?550-?1016mm
Width of loom beam: : 900mm – 1700mm
Width of warp beam: : 1378mm or to order
Beaming speed: : 5~120m/min
Warp beam No.: : 4
Unwinding tension: : 50~500N
Winding tension: : 600~6000N

Description

Technical Features:
·Automatic control by MISTUBISHI PLC
·Closed loop yarn winding and unwinding control by inverter motor, electric-pneumatic proportioning valve and liner displacement transducer
·Measuring roller is connected with liner displacement transducer
·6 inches touch screen for data setting and display
·Upper and lower press roller connect with two pneumatic cylinder for tightening yarn, increase winding angle of draw-off roller to avoid yarn sliding on roller
·Both of draw-off motor and unwinding motor are equipped with brakes, beam in running condition can be stopped quickly whenever required so.
·A rotary encoder is designed on guide roller to measure warp length.
·Unwinding is controlled by inverter motor via a gearbox.
·Beam loading and doffing is controlled by supporting arm pneumatically.
·Guard rail and infrared device for guaranteeing operator’s safety.

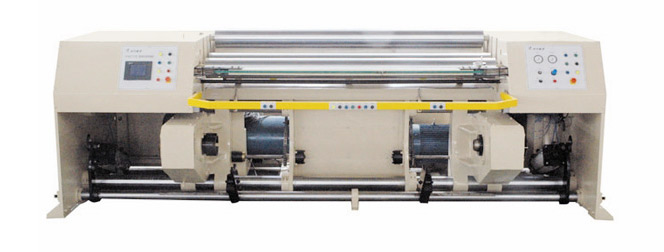

HFBBZ170 Glassfiber Rebeaming Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
