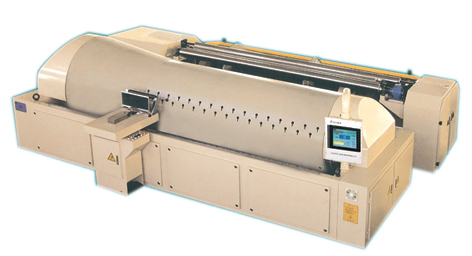

• HF988C Intelligent Sectional Warping Machine

HF988C Intelligent Sectional Warping Machine

HF988C Intelligent Sectional Warping Machine can be completed with water-jet, air-jet, rapier and gripper looms, and is an excellent substitute of similar products of Europe.

Product Details

Quick Details Parameter

Working width: : 2300-4600mm
Beam diameter: : 800mm, 1000mm
Warping speed: : 0-800m/min
Beaming speed: : 0-160m/min
Deviation of beaming tension: : ≤±2%
Braking distance: : ≤2m at 500m/min
Drum diameter: : 1000mm
Cone length: : 1150mm
Section traverse speed: : 0.001-9.9999mm/r
Deviation of section positioning: : ≤0.01mm
Devaiton of section traverse : : 0.02%
Section width: : 20 – 360mm
Microcomputer work station : : 10.4-inch
Cone pitch : : 250×250
Input voltage: : 3×380V ± 10%
Power of warping motor: : 7.5Kw,11Kw
Power of beaming motor : : 15-18.5KW
Weight of headstock: : 7000Kg
Weight of creel: : 2500Kg

Description

Main technical features
It’s a preparatory to weaving lines of wool textile, trademark, heavy twist synthetic fiber, filament, yarn dyed fabric, natural silk, terry tower and industrial special fabrics. It can be completed with water-jet, air-jet, rapier and gripper looms, and is an excellent substitute of similar products of Europe.

·High level electric configuration: MITSUBISHI PLC, PANASONIC servo system, API step motor, DIGITAL touch screen computer workstation.
·Fully computerized automatic control for input data of yarn, automatic calculation, precise displacement of warping table, high intelligence
·Beaming tension presetting function ensure perfect winding result
·Big touch screen, clear, rich information content, easy operation, displaying detailed warping condition and trouble shooting for electric, hydraulic and air components.
·Start point locating and section alignment to be set easily by one key.
·Advanced field bus technology for easy transmission of any signal from any part of the machine, fully automatic operation for testing, trouble shooting and parameter setting.
·Pneumatic car-use disc brake, reliable and large brake moment
·With the increasing thickness of the yarn, warping table controlled by independent imported step motor move backwards automatically to ensure the constant space between front reed and yarn surface.
·Head stock’s horizontal movement controlled by the servo motor. Leasing reed and creel is fixed. The central of warp yarn section is always in beeline thus to ensure even tension of both section sides.
·Broken end position auto-memory function
·Liner type guide ensure precise warping table displacement in two directions
·Integrated warp beaming device suitable for big beaming tension, fit for all types of beams
·Fixed 1:6 conical drum, made of sheet steel, high precise dynamic balanced, fit for all types of yarns.
·Pneumatic three-point automatic positioning leasing reed, high efficiency and function in short time
·Guard rail and infrared raster available for guarantee safety of beaming operation
·Electric broken end stop motion device
·Multiple types of creels for option
·Cone ends and cone pitch to order
·Multiple types of tensioners for option.
·Oiling / waxing device and static eliminator available for option.

HF988C Intelligent Sectional Warping Machine
