HF128 Intelligent Direct Warping Machine

HF128 Intelligent Direct Warping Machine is of direct warp beam driven, ensure warp winding under constant tension.

Product Details

Quick Details Parameter

Working Width: : 1400mm – 2800mm
Beam diameter: : 800mm, 1000mm
Brake distance: : 10-20mm
Reed moving scope: : 10-20mm
Warping speed: : max. 700m/min
Winding density: : 0.3 – 0.65g/cm2
Single yarn tension: : 10 – 60cN
Tension fluctuation: : ± 3cN
Cone pitch: : 250×250mm
Yarn ends: : 640
Voltage: : 3×80 ±10% 50Hz
Power of motor: : 11kw

Description

Main Charactenstic
·Warping winding is of direct warp beam driven, ensure warp winding under constant tension.
·Fully computerized control by Mitsubishi Fx2N-48MT and frequency speed control ensure constant surface speed.
·10.4-inch Digital touch screen, easy operation,direct and information, comprehensive trouble shooting and analyze.
·Pneumatic controlled press roll ensure the required winding density.Pressure adjustable.Press roll bounce quickly upon braking to avoid friction between roll and yarn.
·Complete integrated pneumatic system for automatic loading and doffing,versatile application for all types of beams.
·SANTANT car’s disc brake system specified for braking of warp beam to ensure reliable brake in short time.Electromagnetic brake for press roll and guide bar ensure steady and instant stop.
·Varieties KOYO precise sensors available for monitoring of warping speed and length,winding thickness as well as air pressure.
·Expansion reed move left and right, up and down automatically.The ratio of its traversing speed to the warping speed can be initialized according to different processing demands.It vertical motion avoids friction of reed. Reed gap adjusted by motor,powerful intermittent blower keep reed clean.
·Pneumatic controlled windshield move up automatically along with the operation of headstock.
·Safety guard rail and infrared raster guarantee safety of operation.
·Several types of bobbin creels and tensioners available for option.
·Cone ends and cone pitch to order.
·Broken end stop motion device is of infrared ray type,sensitive and reliable.

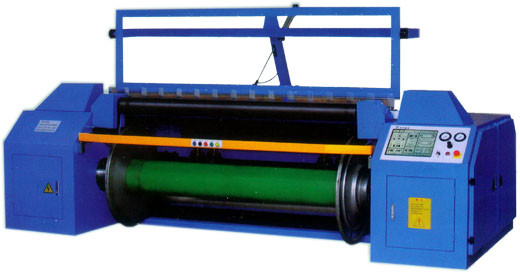

HF128 Intelligent Direct Warping Machine

Company Profile

Established in 1991 and located in Jiangyin Changshou Industrial Park, Jiangyin Huafang New Technology & Scientific Research Co., Ltd. is one of the leading textile machinery enterprises in China and also a High and New Technology Enterprise in Jiangsu Province. We are ISO9001:2000 system certified and fully under normalization management. Huafang undertakes National Torch Plan and national important new product development.

With the ideas of "Make Products, Create Technology, Develop Market and Create Value", Huafang keeps improving and developing.

With technological achievement in the textile machinery field and the latest technology around the world, Huafang has developed series products such as HF928 high speed sectional warping machines, ball warping machines, and compact spinning devices for modification ring frames, and has made contribution for pushing textile industry progressing.
