• HF-DZ-1 High Speed Computerized Single-Needle Quilting Machine

HF-DZ-1 High Speed Computerized Single-Needle Quilting Machine

HF-DZ-1High Speed Computerized Single Needle Quilting Machine is a new high efficiency and high automatic equipment developed by our company.

Product Details

Quick Details

Description

HF-DZ-1High Speed Computerized Single Needle Quilting Machine is a new high efficiency and high automatic equipment developed by our company. It widely used to sewing many kind of beautiful patterns on the high grade cover of the mattress, bedding, home textile and so on.

1. Adopt advanced outsize rotary hook for sewing, auto thread-breaking checking and quilting. The presser foot can be adjusted to different thickness.
2. Equipped with high-capacity computer that can deal with various kinds of complicated patterns. Can run by continuous or interval way according to fabric and processing requirement.
3. 360 degree-jump quilting, can sew hundreds of patterns, the maximum storage of patterns reaches 200.
4. Equipped with functions such as shift output counting, total output counting, pattern effect display, processing locus display, thread auto-cutting, needle auto-lifting, auto-stop when thread-breakage, etc.
5. Online vectorial angle correction and return parameter correction.
6. Adopt Japan servo motors for controlling ensuring more precision.
7. Low noise, low vibration, stable performance.
8. Special pattern-designing software can be exerted. Scanner-input can also be realized.
9. Auto cloth-feeding, pulling and cutting, Automatical flow, production can be finished once

Quilting width 2350×2350mm
Quilting thickness ≤70mm
Needle model 130/21
Stitch length (2-6)mm
Rotating speed of needle 2500Rpm
Capacity (40-120)m/h
Total power 8.8kw
Lubrication Fully Automatic Standard
Control PLC
Dimension (L*W*H) 8600×3740×1900mm
Voltage 3-Phase,380V,50-60Hz
Air Consumption About 0.5stere/Hour 6bar
Gross weight 3500Kg


HF-DZ-1 High Speed Computerized Single-Needle Quilting Machine

Company Profile

Guangzhou Xidengbao Mattress Machinery Co., Limited is a hi-tech company which is specialized in manufacturing mattress machines. At present, our main products are bonnell spring machines, pocket spring machines, LFK spring machines, quilting machines, tape edge machines and mattress packing machines. We have been in this line for more than 20 years. From the machine design and production to the soft development, we always keep ahead of other factories in the same line. All the products have obtained the patents in China. Our company has passed ISO9001:2000 Quality System certificate.

Xidengbao enjoys high prestige in the world due to high efficiency, easy operation and steady performance. Our products have been sold to Asia, Europe, America, Africa and the Middle East. They are popular and faithful to customers.

We are grateful to our customers for their support and loyalty. In return, we will continue to work hard to supply high-quality machines with professional management and post-sales services to our customers.

Our determination is to provide excellent service to our customers.

Our goal is to provide sales support, service support and part support.

Xidengbao continues to work with customers so as to make better machines in the future.

Xidengbao is focusing on customers' demands by providing the best quality machines with exceptional service and communication.

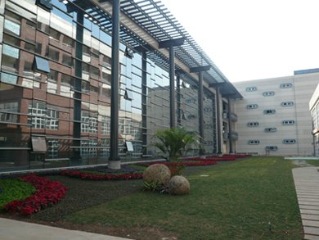

Guangzhou Xidengbao Mattress Machinery Co., Limited
