• HDPE hollow wall winding pipe machine

HDPE hollow wall winding pipe machine

 HDPE hollow wall winding pipe machine is mainly for producing inner diameter from 150mm-2200mm has high ring stiffness and high brunt intensity with "I" structure. It can be used for approximate 50 years and has many

Product Details

Quick Details

Description



Quick Details

  • Condition: New
  • Application: Pipe
  • Plastic Processed: PE
  • Screw Design: Single-screw
  • Automatic Grade: Automatic
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: Kefengyuan
  • Model Number: SJ-65/30, SJ-65/33, SJ-80/33, SJ90/33, SJ-100/33
  • Voltage: 380V/50Hz
  • Power(W): 180k, 250k, 300k, 400k, 500k
  • Dimension(L*W*H): Depend on the horizontal and longitudinal length
  • Weight: 8T, 12T, 15T, 25T
  • Certification: ISO9000
  • After-sales Service Provided: Engineers available to service machinery overseas

Packaging & Delivery

Packaging Details: Packed by wooden pallet and then fix into container
Delivery Detail: 50-80 working days after receiving the buyer's 30% deposit

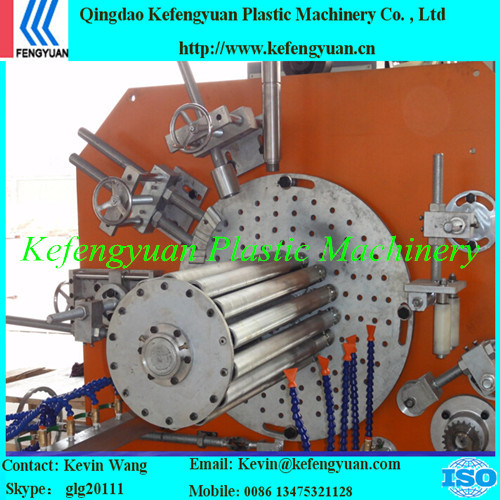

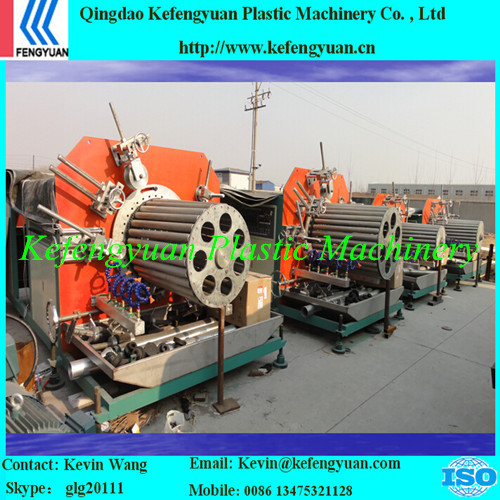

1. HDPE Hollow Wall Winding Pipe Machine

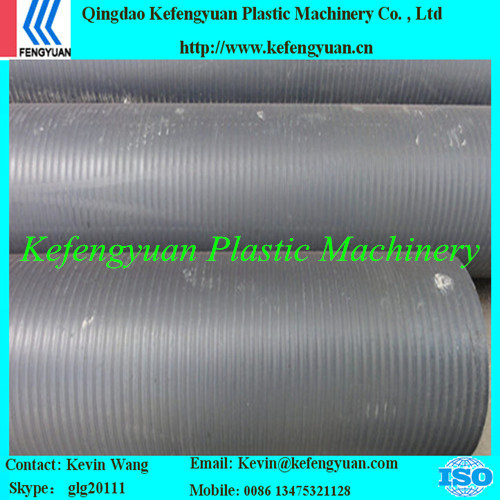

 2. HDPE Hollow Wall Winding Pipe Introduction

    HDPE hollow wall winding pipe machine is mainly for producing inner diameter from 150mm-2200mm has high ring stiffness and high brunt intensity with "I" structure. It can be used for approximate 50 years and has many advantages such as low cost assembly and easy operations, withstanding pressure, corrosion resistant, such as acid, alkali and salt etc. It is becoming as a replacement of cement pipe and cast iron pipe. Nowadays, it is being widely used as sewerage and drainage pipe.



3. HDPE Hollow Wall Winding Pipe Machine Features

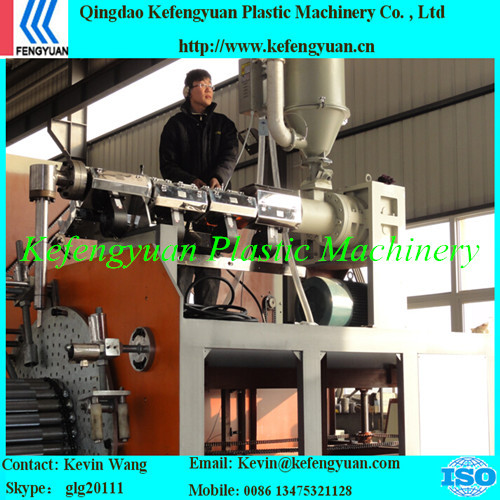

    HDPE hollow wall winding pipe machine with advanced technology. High speed and excellent extrusion quality by adopting two sets of single screw extruders with high efficiency. High quality of winding pipe produced by adopting the unique winding process. Easy operation and high performance by adopting an advanced PLC control system with touch screen.



4. Main Tech. Data of HDPE Hollow Wall Winding Pipe Machine



Mode

KFYPG-800

KFYPG-1200

KFYPG-1600

KFYPG-2200

KFYPG-3000

Extruder Type

KFYSJ

-65*30

KFYSJ

-50*30

KFYSJ

-75*33

KFYSJ-50*30

KFYSJ

-90*33

KFYSJ

-50*30

KFYSJ

-120*33

KFYSJ

-65*30

KFYSJ

-150*33

KFYSJ

-90*30

Output (kg/h)

250

120

300

120

500

150

750

250

900

300

Pipe range (mm)

200-800

400-1200

800-1600

1200-2200

2000-3000

Production

Speed (m/min)

2-16

2-12

1-6

0.5-5

0.3-3

Installed Power (kw)

180

250

300

400

500



Company Profile

 Qingdao Kefengyuan Plastic Machinery Co., Ltd. is a high-tech pipe machine and other profile and sheet plastic machinery manufacturer. Our quality is certified by ISO9001:2008.



Established in 2006, our company develops step by step. With hard work of our great team of skilled technicians we are able to delivery machines in a short time and help customers to install and test machines quickly. Keeping the principle of solid quality, up to date technique and comprehensive service, we have gained a lot of long cooperated customers. Thanks to our honorable customers’ nice feedbacks and suggestions, KFY is able to grow better and better.



Today, we also take an active part in communication with international friends. Absorbing advanced technology and experience, we are trying to be more competitive and considerable to customers. Now we have started good cooperation with friends in East Europe, Middle East, Africa, Asia, South America. And we are broadening cooperation with more friends all the time.



KFY takes an area of 8000 square meters. We have two modern workshops, an office building, dormitory and dining room, which give our staff a good work and living environment.



Dear friends, please tell us your project in mind. We are aimed to work out the best solutions for you! Choose us, we’ll develop together.
