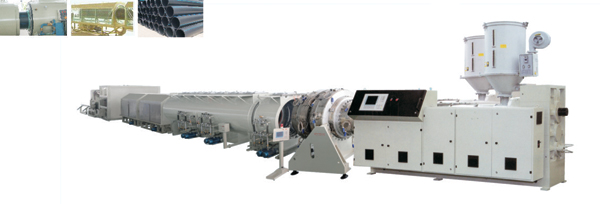

HDPE PIPE PRODUCTION LINE

The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. jiangyanmei081@163.com

Product Details

Quick Details

Description

The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves. All of these offer good plastification and mixing effect. Special design of basket die head for HDPE (PP, ABS) large caliber  pipe with thick wall offer lower melting temperature, good mixing, lower pressure of cavity, and stable production.

Special design for sizing and cooling system by using film and water ring to cool HDPE (PP, ABS) material. Which can fit for the requirement of HDPE (PP, ABS), and the design the stability of diameter and roundness when producing the pipe with thick wall.

Special design vacuum sizing tank can ensure the stability of size and roundness, speed controllers are used in extruder, haul-off to offer stability and precision performance.

The whole line adopts PLC performance control system and large liquid crystal screen, which makes the operation very convenient. The line can be equipped with another extruder used for extruding the mark line.



Main Technical Parameters



Model

Pipe specification

Extruder

Max capacity

Total power

PEG-110

20-83

SJ-60/33 SJ25/25

120-220

130

PEG-160

50-160

SJ-60/33 SJ25/25

120-220

130

PEG-250

110-250

SJ-75/33 SJ25/25

280-350

280

PEG-450

160-450

SJ-90/33 SJ25/25

350-500

400

PEG-630

315-630

SJ-120/33 SJ30/30

550-980

550

PEG-800

400-800

SJ-150/33 SJ30/30

800-1400

750

PEG-1600

800-1600

SJ-150/33 SJ30/30

800-1400

1200
