  • HC Impact Crusher

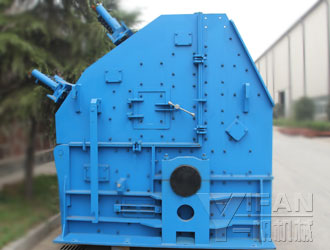

HC Impact Crusher

HCP (A)/HCS (A) Series Impact Crushers are built on advanced technology with a combination of domestic applications. More human-oriented with simple design and reasonable structure, bigger and better cavity, higher capacity. HCP (A)/HCS (A) Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical, etc. industries. naijiaxin11@yeah.net

Product Details

Quick Details

Description

HCP (A)/HCS (A) Series Impact Crushers are built on advanced technology with a combination of domestic applications. More human-oriented with simple design and reasonable structure, bigger and better cavity, higher capacity. HCP (A)/HCS (A) Series Impact Crushers can crush kinds of soft and medium-hard ore, for coarse, medium and fine crushing, in primary and secondary crushing process. The series can be widely used in mining, construction, chemical, cement, metallurgical, etc. industries.

Features and Benefits for HCP (A)/HCS (A) Series Impact Crushers:

1.High qualified raw material, less wear, high productivity under any circumstances. Top manufacturing process is the basis for extraordinary machine.

2.Strong product commonality can reduce cost. Two-cavity impact crusher can becomes three-cavity machine by adding grinding racks, and no need to change other parts.

3.Heavy type rotor, finite element endurance analysis, optimized design, reasonable structure and enhancing moment of inertia lead to bigger crushing ratio and better abrasion resistance.

4.Static and dynamic balancing test for the welding rotor should be done before assembling. To make sure the rotor have a smoothly running and long working life.

5.Main shaft is finished by quality forging, adopts keyless design and world advanced cover tightening connection to ensure the reliable working and make the maintenance easier.

6.Unique locking device for hammers makes the tightening moment of force more safe and bigger. And the replacement of hammers can be more simple and convenient.

7.Standard design for liners increase the interchangeability, decrease the repertory and variety of liners.

8.Simple but practical locking device lock the shell 1 and shell 2 together. This device has a easy operation and saves locking time.

9.Unique hydraulic device design is convenient for opening the fame racks to replace wear parts and adjust the discharge size.

10.Simple structure for impact racks and grinding racks. Easy operation, long working life, convenient maintenance and low cost.

Model

Max Feed edge(mm)

Capacity(t/h)

Motor power(kW)

WeightExcluding Motor(t)

with grinding cavity

without grinding cavity

HCP128A)

300

30-50

37-55

11.56

10.56

HCP139A)

400

50-80

55-75

14.4

13.47

HCP239A)

500

70-120

110-132

14.696

13.596

HCP255A)

500

100-180

132-160

17.43

16.12

HCP359A)

600

160-250

200-250

26.26

24.61

HCP459A)

650

220-450

250-315

27.046

25.438

HCP579A)

700

250-550

400-440

36.01

33.67

HCP679A)

800

300-600

440-560

52.6

48.3

HCP779A)

1000

500-850

630

84.1

78.9

Model

Max Feed edge(mm)

Capacity(t/h)

Motor power(kW)

WeightExcluding Motor(t)

with grinding cavity

without grinding cavity

HCS128A)

250

30-50

37-55

 11.36

10.3

HCS139A)

300

50-80

55-75

14.16

13.23

HCS239A)

350

70-120

110-132

14.675

13.583

HCS255A)

350

100-180

132-160

17.465

16.153

HCS359A)

400

160-250

200-250

 26.35

24.88

HCS459A)

450

220-450

250-315

27.12

25.655

HCS579A)

500

250-550

400-440

36.292

33.95

HCS679A)

600

300-600

440-560

53.1

49.2

HCS779A)

700

500-850

630

85.2

79.3



Company Profile

郑州一帆机械设备有限公司(由山德技术(北京)有限公司控股),总部设在北京,是中国知名的破碎筛分设备制造商。我们为客户提供全系列破碎筛分设备,包括 液压圆锥破碎机、颚式破碎机、反击式破碎机、立式冲击破碎机(制砂机)、移动式破碎站和振动筛,我们不仅为客户提供高性价比的产品,还提供一流的服务支持 及解决方案。产品在大量国家重点工程中得到应用,如首都机场扩建、国家大剧院、向家坝水电站、金安桥水电站、官地水电站、宝泉抽水蓄能电站、舟坝水电 站、甘肃九甸峡水利枢纽工程,沈大高速、宁杭高速、川渝高速改扩建、京承高速等,另外,成套设备已出口到俄罗斯、蒙古、中亚、非洲等国家和地区。公司拥有 多名国内破碎筛分的专家, 具有强大的新产品研发能力。

 公司作为国内最早从事立式冲击破碎机(制砂机)研究和生产的厂家之一,2004年投入大量资金对市场畅销的Y系列立式冲击破碎机(制砂机)进行了改进, 推出了全新的VI系列高性能立式冲击破碎机,其性能达到国际先进水平。这些创新将使一帆公司继续保持立式冲击破碎机(制砂机)在业内的领先地位。我们的产 品已广泛应用于矿山、建材、冶金、交通、水电、煤炭、化工、环保等行业。
