  • General Relay

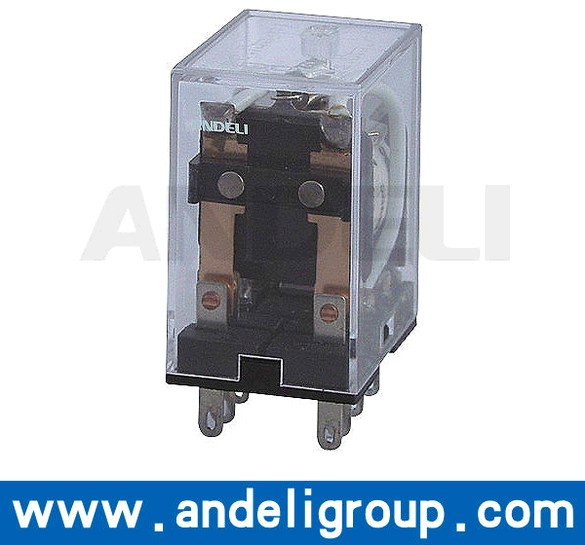

General Relay

1.Rated up to AC:250V DC:30V 2.CE certification 3.IEC60947-4-1 stardand 4.acceptable for OEM

Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : MY2
Theory: : General Relay
Usage: : General Purpose
Size: : Miniature
Protect Feature: : Sealed
Contact Load: : Low Power
Control Solenoid: : Rated Voltage 250V

Description


General Relay

Why choose us?

1. 20 years - Andeli Group Co.,Ltd is founded in 1993.

2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.

3. 300 cooperating companies - We have over 300 cooperating companies.

4. 3000 workers - We have over 3000 workers.

5. USD150,000,000 - The total assets is USD150,000,000.

6. 235,000 square meters - The area of Andeli is 235,000 square meters.

7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……


Specification

Specifications Model
JJDZ3-33
MY2
MY3
Terminal layout
3Z
2Z
3Z
Contact capacity
AC
3A/28VDC 3A/220VAC
5A 250V
5A 250V
DC

5A 30V
5A 30V
Contact resistance(mΩ)
≤50mΩ
≤50mΩ
≤50mΩ
Insulation resistance(MΩ)
≥500MΩ
≥100MΩ
≥100MΩ
Dielectric strength
BOC
1000VAC
1000VAC
1000VAC
BCC
5000VAC
1500VAC
1500VAC
Coil nominal voltage
AC
6 to 220V
6 to 240V
6 to 240V
DC

6 to 220V
6 to 220V
Coil nominal power
AC
≤3W
0.9VA to 1.2VA
0.9VA to 1.2VA
DC

≤0.9W
≤0.9W
Electrical life(OPS)
105
105
105
Mechanical life(OPS)
107
107
107
Operating temperature(oC)
-30~+40
-40~+60
-40~+60
Weight(g)
85
≤35
≤35
Mounting methods
Outlet
Printed-circuit board, Outlet
Printed-circuit board, Outlet

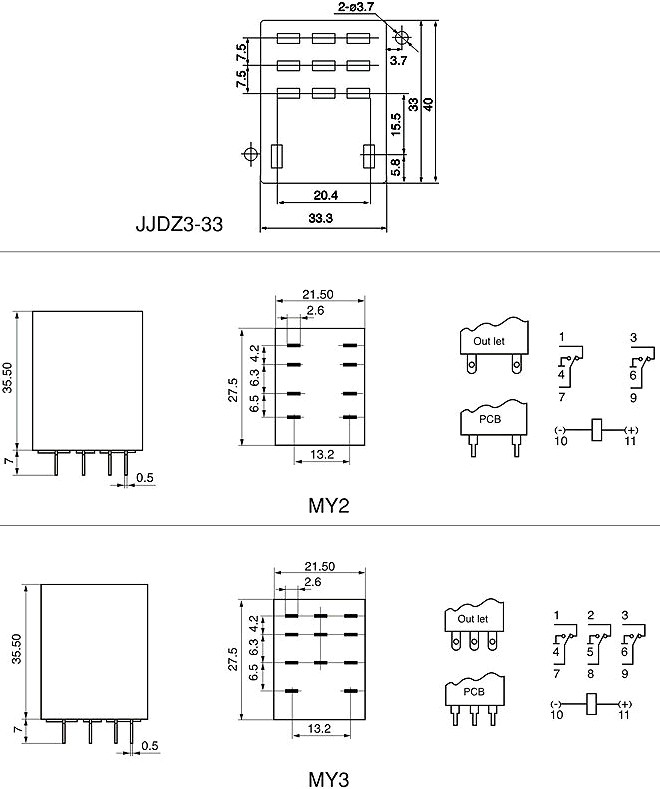

Dimension

outline



General Relay

general relay
