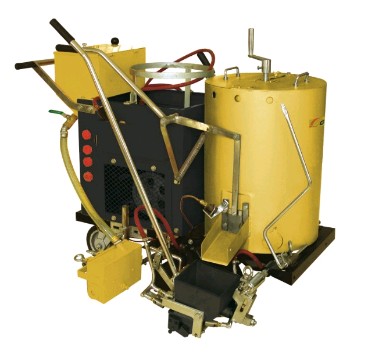

• GN-SPT-I Self-propelled Thermoplastic Road Marking Machine

GN-SPT-I Self-propelled Thermoplastic Road Marking Machine

As the upgration of hand-pushed thermoplastic road marking machine, it is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.

Product Details

Quick Details Parameter

Engine: : Robin 6.0HP or Honda 5.5HP
Max climbing ability: : 15°
Capacity: : 14L
Marking thickness: : 1.5-3.0mm
Measurement: : 1200*850*1100mm
Weight: : 230KG

Description

GN-SPT-I Self-propelled Thermoplastic Road Marking Machine

1. As the upgration of hand-pushed thermoplastic road marking machine, it is mainly used for marking reflective lines(such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.
2. Four stroke air cooled gasoline engine imported from Japan (options: electric start petrol or diesel engine or the liquefied gas engine) and original variable speed transmission system enable the machine to run stably and be operated easily with less noise.
3. It uses imported specially-made marking shoe which is high-temperature (2000℃) resistant and wear resistant, alloy steel frame(screeding structure), and imported hard tungsten alloy cutter head. All ensures the marking lines to be straight, even and pretty.
4. The variable(automatic quantitation) glass bead broadcaster synchronous with the paint screeding system ensures the glass beads to be spayed more even and be used more economically. The sparying width of glass bead can be adjusted freely.
5. It uses specially-made rubber tyres which are wear resistant, aging resistant and high-temperature resistant. The lockable positioning device on rear tyre ensures the marking machine to run in a straight way or turning a corner smoothly.

Marking width: standard 150mm (options: 100, 120, 150, 200, 250, 300mm)adjustable,
Paint tank: heat insulation tank made of stainless steel or cold rolled antioxidant steel; capacity:65L; equipped with vertical vane-type hand stirring device.
Heating temperature: controlled according to different paints (180-220℃)
