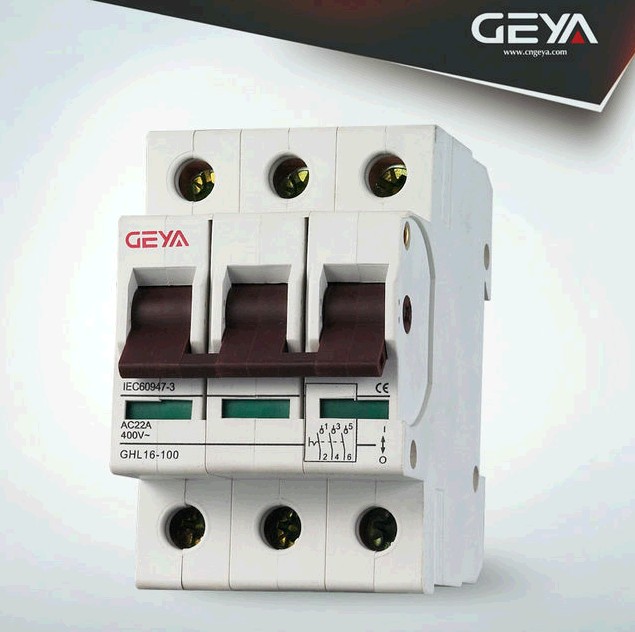

• GEYA C16 Miniature Circuit Breaker / MCB

GEYA C16 Miniature Circuit Breaker / MCB

GEYA C16 Miniature Circuit Breaker / MCB Isolating switch

Product Details

Quick Details Parameter

Brand Name: : GEYA
Model Number: : GHL
Type: : Mini
Poles Number: : 3
Poles: : 1, 2, 3
Rated working voltage: : 230V/400V
Certificate: : CE
Rated Current: : 16,20,25,32,40,50,63,100,125
Place of Origin: : Zhejiang, China

Description


GEYA C16 Miniature Circuit Breaker / MCB


Construction and Feature
Protection against both overload and short circuit
 High short-circuit capacity
Contact position indication by indication handle
Applicable to terminal and pin/fork type busbar connection
Easy mounting onto 35mm DIN rail
suitable for European Australian Russian market
Technical Data
Pole No: 11P+N 2 3 3P+N 4
Rated voltage: AC 230/400V
Rated current(A):  1 2 3 4 6 10 16 20 25 32 40 50 63
Tripping curve: B C D
Rated short-circuit capacity (lcn):6000A
Rated frequency:50/60Hz
Energy limiting class:3
Rated impulse withstand voltage:6.2KV
Electro-mechanical endurance:4000
Contact position indication
 Connection terminal:
Screw terminal
Pillar terminal with clamp
Connection capacity: Rigid conductor up to 25mm2
Fastening torque:2.0Nm
Installation:
On symmetrical DIN rail 35mm
Accessories
Auxiliary contact: OF,SD
Shunt tripper: HHMX etc
Over-voltage & under-voltage tripper: HHGQ etc


GEYA C16 Miniature Circuit Breaker / MCB

GEYA C16 Miniature Circuit Breaker / MCB


GEYA  ELECTRICAL Co., Ltd Exhibition history

exhibition history

FAQ:

Q1. What’s the payment term?
A. We accept TT,30% deposit and 70% balance against copy of BL

Q2. How’s the delivery time?
A. usually it will take about 25 days for production

Q 3. Tell me the standard of package?
A. Normally are cartons, but also can pack into PLATES for more safe.

Q4. What kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higher price.
Q5.Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.

Q6.Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.

Q7.We wants to know month capacity.
A. 360000pcs/month

Q8.Where is your market?
A. Our products are popular in UK, Iran, Pakistan, India, Dubai, Zambia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q9. What kind of certificate you have?
A. Our company already achieves ISO, and for products, we have CE, SEMKO, CB, and VDE (pending).


Production Process

production process


Certification

certification

Company Profile


geya logo

Geya Electrical Co., Ltd. is a leading manufacturer of MCB, RCCB, MCCB, switchgears, industrial plugs, socket outlets, relays and other electrical accessories in China. Our MCB products have proven popular all over the world, with our high quality, competitive prices, fast delivery and efficient service welcomed by all clients.

We now have 500 employees, including 50 engineers and technicians. Boasting magnificent office and production buildings, we are also equipped with comprehensive testing instruments. A leading manufacturer of low-voltage electrical appliances, we currently have 400 models available in 100 types and 5 series. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons, switches, industrial sockets, multi-meters and SVC voltage regulators.

Having received ISO9001 certification for our management system, we also hold CB, CCEE, CE, UL and VDE product approvals. Exporting our various lines to clients throughout the international market, we now have customers in 60 countries in Europe, South America, the Middle East and Southeast Asia.

With our products welcomed by both importers and consumers at home and abroad, we look forward to your inquiries for future cooperation.
