• Full automatic custard cake production line

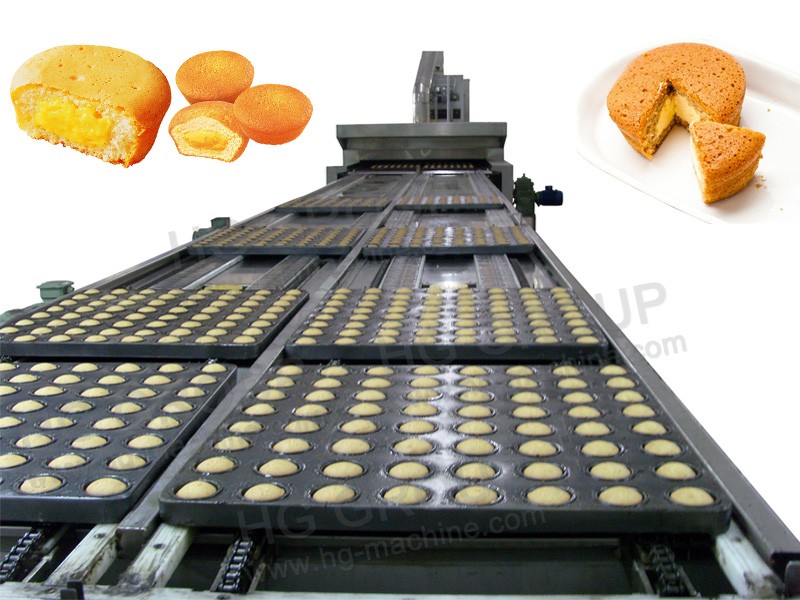

Full automatic custard cake production line

The fully-automatic Custard/Cup Cake Production Line is a multi-purpose fully-automatic core-filling custard pie production line which is developed based on the original equipment in order to meet various demands of different food products factories. It can produce core-filling custard pies as well as cup cakes, and can also produce cakes of various shapes by using different molds.

Product Details

Quick Details Parameter

Production capacity: : 10-11 ton/day
Installed Power: : 46kw
Gas cost: : 20-35kg/h
Pressure of Compressed Air: : 0.6mpa
Length of Oven: : 76m
Speed of Rotation: : frequency control

Description

The fully-automatic Custard/Cup Cake Production Line is a multi-purpose fully-automatic core-filling custard pie production line which is developed based on the original equipment in order to meet various demands of different food products factories. It can produce core-filling custard pies as well as cup cakes, and can also produce cakes of various shapes by using different molds.

Full automatic custard cake production line

Manufacturing standards:
•All of the parts in contact with material adopt stainless steel SUS316L or SUS304,strong corrosion, heat resistance and easy to clean.
•The new oven external can use stainless steel according to customer requirements,nice outlook, high temperature resistant and easy to clean.Oven shell using thermal insulation cotton,good heat preservation effect , high thermal efficiency and low energy consumption.
•Adopt international advanced PLC automatic control system,production line operation is stable and reliable.

The Process flow of this production line:
Mixing → Forming → Rack oven baking → Out oven and cooling → De-mould → Collecting → Centering filling → Cooling → Sterilize → Packaging

Main components:
•Stirrer: It is divided into traditional agitator and air agitator;
•Forming Machine: Double-row forming machine
•Combustible gas hot-air circulation baking ovens:As a novel baking furnace developed by our factory based on the imported equipment, it adopts the most advanced gas combustion and hot-air circulation heating mode, and has six temperature zones, namely an upper front temperature zone, a lower front temperature zone, an upper middle temperature zone, a lower middle temperature zone, an upper back temperature zone and a lower back temperature zone; after the temperature is set, the control motor is used for automatic control by a disc valve, the heat is up and down transferred to the furnace hearth by the air duct to bake foods; the furnace has the advantages of quick heating, stable temperature, little change, automatic control of temperature, etc., therefore, the produced cakes have the advantages of good taste, softness, more uniform surface color and luster, freshness, tenderness, etc.
•Demolding Machine: Suction type demolding machine, the shape of cakes is unchanged.
•Core-filling Machine: It can automatically fill the whole row of cakes with stuffing; if one cake is sensed not to be on the production line, the filling needle will not work to avoid the damage to the conveyor belt. The waste of raw materials and the cleaning procedure is avoided while the production efficiency is greatly improved.
•Empty disc cleaning conveyor.

Main charateristic:
◇ Full automatic production line collects electricity, light, gas, machine in the development, high degree of automation, high yield.
◇ There is an observation window on the Baking oven available for watching during operation.
◇ Less artificial contact with product, easy to operate.
◇ The production line has reasonable artistic design , stable operation, and cleaning device,high efficiency and energy saving.
◇ Provide whole factory planning, personnel training and technological formulation.
◇ Products have a long shelf life

Company Profile

HG Group is the professional manufacturer to make food machinery. HG is the strong and large team in the food machinery industry. Our food machinery are integration of European ,American and Japanese advanced technology. The standard of technology and information are in forefront of China. We are Well-known in domestic and abroad markets.

In these years many of our new products were included in the project of Shanghai Science and Technology industrialization, Shanghai high-tech Achievement Transformation Project, National Spark Program, National important new products Program. We have above 300 national patents. We are the patent pilot enterprises. We have passed the ISO9001, CE certificates. We were gained the AAA credit certificate of contract. Our factory has long history, powerful technology, reliable quality and considerate after-sale service. We will work hard in the future to takes more new products to the market.

HG group will become barriers to food machinery manufacturing industry through our effort. It will build a great wall to makes the 9 branch factories hardly to be exceeded. The team of HG will be based of management, supplemented by technological innovation. HG will become the most powerful team to gather with the 9 branch factories.
