  • Full Electric Stacker(DC POWER)

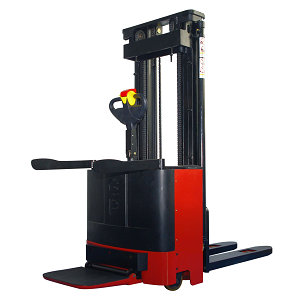

Full Electric Stacker(DC POWER)

This Full Electric Stacker has the quality of Low Noise, No Pollution, And High Reliability

Product Details

Quick Details

Description

FULL ELECTRIC STACKER

Model

Item

Specification

Unit

ERC112

ERC115

ERC116

ERC118

ERC120

1



General

Rated capacity

Kg

1200

1500

1600

1800

2000

2

Load center

mm

600

600

600

600

600

3

Drive type





Standed

4

Motor brake





Electromagnetic

5

Load distance (centerline of front axle to front face of forks)





716

716

716

716

716

6

Battery weight

Kg

200

200

200

280

280

7

Self weight

Kg

1080

1105

1130

1250

1280

8

Full Load per Axle - Driving side / bearing side





865/215

885/220

905/225

1000/250

1025/255

9

Empty Load per Axle -  Driving side / bearing side

Kg

970/1310

1110/1495

1095/1635

1300/1750

1400/1880

10



Dimensions

Lifting Height (standard)

mm

3000

11

Fork min. ground clearance

mm

85

12

Adjust width of fork (standard)

mm

570

13

Fork size

mm

60/180/1150

14

Minimum ground clearance

mm

25

15

Overall length

mm

1940

1940

1940

1970

1970

16

Overall width

mm

850

1050

17

Overall height (including handle )

mm

1465

1465

1465

1465

1465

18

Bodywork height

mm

845

845

845

845

845

19

Overall height mast raised

mm

3530

3530

3530

3530

3530

20

Overall height mast lowered

mm

2055

2055

2055

2055

2055

21

Front wheel tread

mm

390

390

390

390

390

22

Supporting wheel tread

mm

708

708

708

800

800

23

Minimum turning radius

mm

1630

1630

1630

1630

1630

24

Stacking right angle aisle width

mm

2236

2236

2236

2270

2270

25

Perfor-mance

Max. driving speed   full/empty

Km/h

5/6

5/6

5/6

5/5.8

5/5.5

26

Max. lifting speed   full/empty

mm/s

110/130

95/130

90/130

80/120

80/120

27

Max. declining speed   full/empty

mm/s

120/110

110/100

110/90

80/90

80/90

28

Grade ability  full/empty

%

5/8

5/8

5/8

5/8

5/8

29



Wheel

Wheels material





Polyurethane

30

Wheel number (front/rear)





4/3

31

Drive wheel (mm)





φ252x87

φ252x87

φ252x87

φ252x87

φ252x87

32

Load wheel (mm)





φ80x70

φ80x70

φ80x70

φ80x70

φ80x70

33

Balance wheel (mm)





φ150x48

φ150x48

φ150x48

φ150x48

φ150x48

34

Wheelbase





1295

1295

1295

1295

1295

35



Power and Control

Travel motor

KW

1.2

1.2

1.2

1.2

1.2

36

Lift motor

KW

2.2

3

3

3

3

37

Voltage

V

24

24

24

24

24

38

Battery capacity

Ah

210

210

210

280

280

39

Control system





CURTIS / ZAPI / SME

40

Sound level at the driver's ear acc. to EN12053

dB/(A)

67


Caracteritic of Full Electric Stacker:
1.Conforms To The Standards Of En1726-1:1999and En1175-1:1998
2.High Stability And Flexible Operation
3.Smooth stepless speed control from CURTIS
4.This Full Electric Stacker Machine has the quality of Low Noise, No Pollution, And High Reliability
5. Power unit and drive wheel made in Europe
6. Large Capacity Battery Makes The Stacker Work Longer
7.Top-Quality Control System - CURTIS from USA or ZAPI / SME from Italia

Full Electric Stacker(DC POWER)

Company Profile

Shanghai Gather Power Industry Co., Ltd was established in 2003 in Fengxian District, Shanghai, China, has two Joint-stock manufacturing factory. GP currently have more than 800 staffs, among whom 40% are university staff, including 60 engineers and technical researchers. Most of the 60 technicians have many years experience in forklift manufacturing industry, with rich experience and comprehensive technology, they served as a Chief Engineer or Assistant Chief Engineer in well-known forklift manufacturing enterprises.
The company has invested 10 million USD dollars in construction of the factory. The factory owns large scale forklift truck laboratory, an international advanced component processing center, forklift truck assembly lines, mast production lines, automatic spraying lines and metal processing workshops, etc.
Its leading product, GP brand forklift, can be widely applied in the material handing of industrial, mining, carrying, storage and logistics trade. With great effort to promote in the international market, GP has established long-term business relationships with a large scale of professional customers. The GP brand enjoys popularity in Mideast market and Europe.

The company has an annual production output capacity is 5,000 forklifts and 6,800 warehousing equipments, including 36-45 tons mast mobile container crane, 1-15 tons internal combustion forklift trucks , 1-3.5 tons electric forklift trucks , 1-2.5 tons electric reach trucks, and our warehousing equipments including electric stackers, electric pallet trucks, hand-hydraulic pallet trucks, semi-electric stackers, tractors, etc. The full range encompasses close to 100 different models.

The products have obtained "special equipment manufacturing license" issued by the State General Administration of Quality Supervision, "special equipment type test certificate" awarded by the National Construction Machinery Quality Supervision and Inspection Center and "CE certificate" which permitted access to the Europe market. Our company has passed ISO9001:2000 quality management system, ISO14001:2000 environment management system, OHSAS18001:1999 occupational health and safety management system certificate. Company products with excellent quality and perfect after-sales services, exporting to over 100 countries and regions in Europe, America, Mideast, Asia, Africa, etc. Get the praise and recognition of customers at home and abroad.
