  • Foil Coiling Machine (Double)

Foil Coiling Machine (Double)

1. Reasonable structure 2. Stable performance. 3. Large coiling force Please contact us! Email:

Product Details

Quick Details

Description


Skype:snowing1203
MSN:luckywang03@hotmail.com

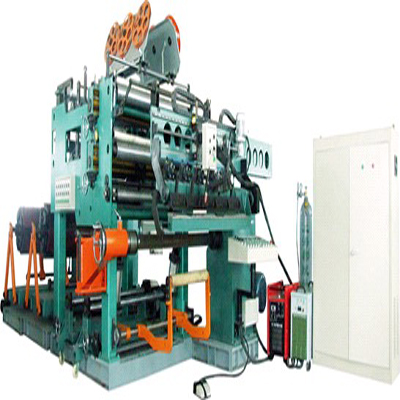

The PRJ-1400 Foil Coiling Machine (Double) is a dedicated device for the production of low-voltage coils for dry-type transformers and even for production of energy-saving large-capacity transformer coils. The model is featured by the following: available for lap winding or parallel winding of double-layer foils (aluminum or Copper), and also for single-layer winding. The lower layer adopts three-point simultaneous correction technology, which facilitates high correction speed and high accuracy. In addition to employing imported linear guide and ball screw, the (in order to ensure smooth welding quality, but also optional water cooling system).. The tension of the foil is generated by the de-coiling device. The winding spindle is controlled by a variable frequency system so that the machine will maintain stable positive rotation and negative rotation even when under fairly powerful tension. Except for the motor, the implementing mechanism is controlled by pneumatic components.

The machine consists mainly of: (1) welding device, (2) winding machine, (3) end-insulation de-coiling device, (4) end-insulation guiding device, (5) dust removal device, (6) shearing device, (7) layer-insulation de-coiling device, (8) photoelectric side-control device, (9) raw-edge-smoothening device, (10) materials conveying device, (11) de-coiling machine, (12) correcting device, (13) electric control box, (14) tungsten electrode argon arc welding machine, and (15) feeding car.

Main Technical Parameters

Item
Parameters
Coil outer diameter
200600mm
Foil band width
2501400mm
Line material shape
circular, square, rectangle
Conductive foil material
Alu foil or copper foil
Thickness of conductive material
Alu0.52mmCopper0.51.6mm
Layer-insulation amount
12layer
Terminal insulation amount
13layer
Winding speed
030 r/min
(Pedal unrolling control, stepless adjustment)
Soldering speed
00.5m/min(manual, automatic, pneumatic control, stepless adjustment)
Max. tension of foil band
20000N
Aligning accuracy
±0.4mm
Extension scope of de-coiling cylinder
Φ470~Φ520mm
Total power of motors
31kw
Total weight
8500kg
Overall dimensions
6700×2500×2500mm



Company Profile

We are a professional player in transformer industry,  our annual total production capacity is about 18,000,000 KVA, our factory covers an area of 370,000 square meters and a building area of 100,000 square meters, with total assets of 350 million CNY and more than 1000 staff members with engineering and technical employees accounting for 21%.
Our main products include 220kV and below&200MVA and below oil immersed power transformers, 110kV and below furnace transformers, 110kV and below rectifier transformers, 35kV dry type transformers, 35kV combined transformer substation, 35kV and below amorphous alloy transformer, 35kV and below reactor etc. All of our products' performance measures up to the standards established by International Electric Committee (IEC).
We have many advanced production and testing facilities which imported from Germany and Japan, such as silicon sheet shearing automatic lines, automatic and continuous extrusion lines of electromagnetic wires, Kerosene vapor vacuum drying systems and more than 1,500 sets of production and complete testing systems for professional transformer production and other testing equipment. We can meet the requirements of customers completely.
 We have obtained ISO9001 quality management system and ISO14001 environmental management system certifications and in strict accordance with these standards in our routine.
We also obtained the CE certificate, CTQC test report, Nation Standardization Management AAA Certificate, National Measuring System Certificate and others. Many prizes also have been awarded to us in the past years by the relevant national Authority and local government.
Owing to our good reputation on quality and service, our products have been exported to more than 20 overseas countries and regions.
We sincerely hope we can provide you with best products and satisfied service, and you are always warmly welcome to visit us.
