  • Float Level Transmitter

Float Level Transmitter

MTUHZ-58 series float level transmitter is mainly used for water treatment in petroleum, chemical, electric, papermaking, food manufacturing and other industries. This transmitter is also applied in any type of liquid level measurement in open vessel or sealed container.  julin@mec.com.cn

Product Details

Quick Details

Description


Overview:
MTUHZ-58 series float level transmitter is mainly used for water treatment in petroleum, chemical, electric, papermaking, food manufacturing and other industries. This transmitter is also applied in any type of liquid level measurement in open vessel or sealed container. The wetted part is made of 1Cr18Ni9Ti Stainless steel with strong corrosion resistance. Reed switch—the key component of float level transmitter—uses importing original parts and has the characteristics of reliable performance and long life. MTUZ-58 series float level transmitter is able to overcome false-level phenomenon which is affected by liquid foam.

Technical Parameter:
Medium: Viscosity≤0.07Pa.S,Density>0.68g/cm3
Measurement Range: 100-3000mm,Above 3000mm design on request
Output Signal: 4-20mADC
Load Resistance: ≤500Ω
Power Supply: 24VDC±10%
Working Pressure:0-1.6Mpa
Medium Temperature: -20-100℃
Ambient Temperature: -20-70℃
Accuracy: ≤±10mm
Cable Interface: M20×1.5(internal thread)
Installation: Flange installation
Wetted Material: 304 Stainless Steel; PP; PTFE
Explosion-proof Grade: EX dllCT6, EX iallCT4-6

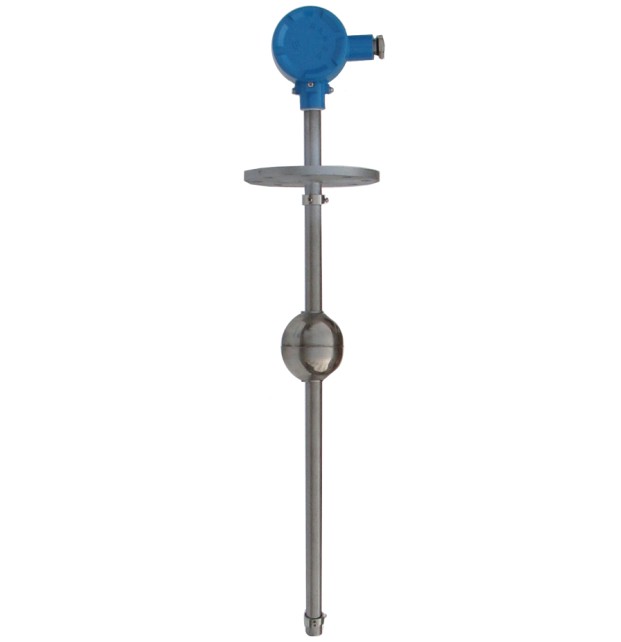

MTUHZ-58 Series Float Level Transmitter
