  • Flat Bed Box Way CNC Lathe-CK6232L

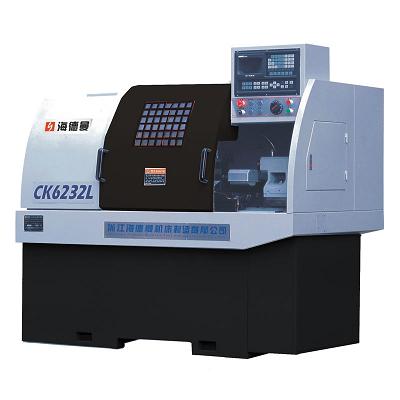

Flat Bed Box Way CNC Lathe-CK6232L

1. Heavy-duty guide way are quenched to ensure long using-life and high rigidity. 2. Headstock made of high-alloy steel, hardened, precision-ground and dynamically balanced. 3. 5.5KW main motor with wide speed range and large spindle bore 63mm. 4. The 3-jaw chuck 200mm ensure wide machining range for most workpiece. 5. Implemented cycles for facing and plain turning radius, taper, thread, plunge-cut, and complete contouring. Please contact us:zhuxiaochen124@126.com

Product Details

Quick Details

Description

CK6232L

1. Heavy-duty guide way are quenched to ensure long using-life and high rigidity.

2. Headstock made of high-alloy steel, hardened, precision-ground and dynamically balanced.

3. 5.5KW main motor with wide speed range and large spindle bore 63mm.

4. The 3-jaw chuck 200mm ensure wide machining range for most workpiece.

5. Implemented cycles for facing and plain turning radius, taper, thread, plunge-cut, and complete contouring.



Parameter

Item

Detail

Unit

CK6232L

Processing ability

Max. swing diam. over bed

mm

Φ420

Max. process length

mm

600

Max. swing diam. over slide

mm

Φ180

Max. through bar diam.

mm

Φ50

Through hole diam.

mm

Φ63

Chuck size

in

8"

Spindle speed range

rpm

300-2400

Main motor

kw

5.5

X/Z axis

Travel

mm

300/630

Rapid traverseservo

mm/min

6000/6000

Torqueservo

Nm

4/6

Turret

Turret type



Electric turret

Tool position number



4

Tool cross section

mm

25x25

Hydraulicstandard

Nominal pressure

Mpa

2.5

Content

L

25

Hydraulic oil pump motor

kw

0.75

Tailstock

Tailstock type



Manual

Cone of tailstock sleeve



MT4

Diam. Of tailstock sleeve

mm

Φ60

Travel of tailstock sleeve

mm

90

Auto lubrication pump

w

5

Coolant pump

w

90

Other

X/Z axis positioning accuracy

mm

0.020/0.020

X/Z axis repeatability accuracy

mm

0.008/0.008

Size( Length X Width X Height)

mm

1950x1210x1800

Net weight of machine

kg

1600

Company Profile

    Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.

    Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.

    Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
