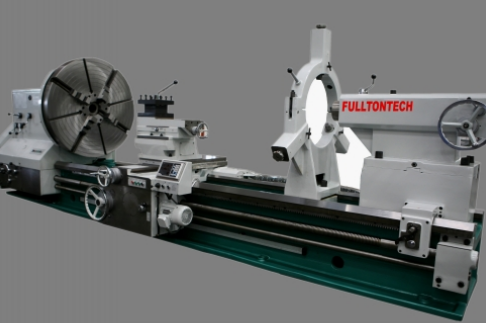

FULLTONTECH CKF61Series Horizontal Turning Big Table CNC Flat Bed Lathe with Steady Rest

Big Swing Diameter
Heavy load of workpiece between centers
Big spindle bore of 100mm
With Siemens/Fanuc systems available

Product Details

Quick Details Parameter

Place of Origin : Liaoning, China
Type : Horizontal
CNC or Not : CNC
Voltage : 220-440V
Brand Name : FULLTONTECH
Power(W) : 30Kw

Description

 1 .Machine specification

Machine specification Unit CKF61100   CKF61125
Max.Swing dia. of workpieces over  bed                                                      mm                                         1000             1250
Max.Swing dia.over carriage mm 630      830
Max.weight of workpiece tons 8
Chunk dia.  mm 1000
Max.length of workpiece mm                             1000-23000
Width of guideways  mm              755
Guideway type   two guideways
Electric turret

4 positions-vertical

                6 positions-horizontal



Steps for spindle speed

ranges

 4 ranges
Range of spindle speed  rpm  2-300
Dia.of spindle bore  mm  100
Taper of spindle hole    1:20
Spindle nose    C15
Moving distance of tailstock sleeve  mm  300
Dia. of tailstock sleeve  mm                    160
Rapid travel speed of tailstock  mm/min         --
Main driving motor  kw  30





2. Main purchase parts list

No.

Item

Specification

Supplier

1

NC control

SINUMERIK 802D SL S2

SIEMENS

2

X/Z axes servo motor

1FK7100-18N.m/1FK7101-20N.m

SIEMENS

3

Main motor

YP-50-30-4

SENLIMA Shanghai

4

Frequency converter

CIMR-G7A4030

YASKAWA

5

Ball screw of X axis

Φ40×10

Nanjing Gongyi

6

Ball screw of Z axis

Φ80×10

Nanjing Gongyi

7

Four position electrical tool post

AK23320

Huanqiu Yantai

8

Spindle bearing

C3182126

NSK

C3182140M

NSK

C8134

NSK

9

Centrailzed lubrication unit



Xiangshan China

10

Electrical parts in the cabinet

CE

ABB or Schneider





3. Machine standard accessories and tool kits

No.

Item

Spec.

Quantity

1

Four jaw chuck

Φ1000mm

1 set

2

Steady rest

Φ50~470mm

1 set

3

Center

M6; S77-1

2 pieces

4

Spanner of four jaw chuck



1 piece

5

Foundation bolts and nut



1 set

6

Adjustable pad



1 set

7

Oil gun



1 piece

8

Tool kits



1 set





4. Pictures of Main Parts:





Company Profile

Fullton Machinery Group is one of the leading machinery group specializing in producing heavy duty machine tools, and supplying the latest turning, boring and milling technology to worldwide customers.

We manufacture Vertical turning lathe, Heavy-duty horizontal lathe, Boring mills and Gantry machining center. In reliance of the advantage in product range, reliable quality, technical back-up and after-sales networks over 30 countries worldwide and FULLTONTECH has become the well-known Chinese brand name overseas.

Combined with outstanding productivity and service, our customers enjoy a significant market advantage. We believe in achieving excellence and that there is always room to improve. FULLTONTECH consistently strides ahead of the pack in precision, innovation, service excellence, and a practical, sustainable approach to business.
