• FMW Series Gravity Filling 3-In-1 machine

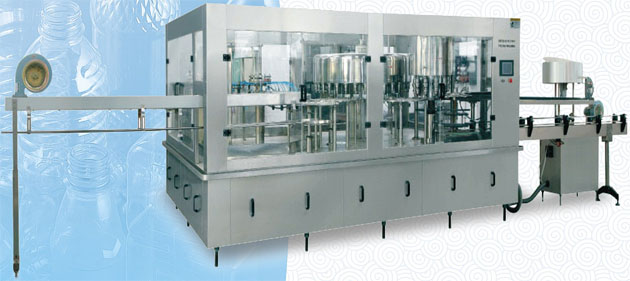

FMW Series Gravity Filling 3-In-1 machine

This machine is mainly used for washing, filling sealing Non-Aerated carbon dioxide drink such as mineral water, pure water, non-gas wine drink and so on,The machine design is shorten the time for the drink material contact with outside,Incrensed the sanitation condition and throughout and economy benefit. zhangmimin122@126.com

Product Details

Quick Details

Description

Capability Character:It adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east. The main machine adopts advanced PLC control technology. The key electric elements adopt international famous products.

型号 model

FMW16-12-6

FMW16-16-6

FMW24-24-8

FMW32-32-10

FMW40-40-12

FMW50-50-12

FMW60-60-12

生产能力(500ml/b/h)Capacity(500ml/bottle/h)

3000-4000

5000-6000

8000-10000

12000-14000

16000-18000

20000-24000

25000-28000

适用瓶形Suitable bottle shape

PET圆形或方形circular or square

瓶径Bottle height(mm)

φ50-φ90

瓶高Bottle height(mm)

150-310

压缩空气压力Compressed air pressure(MPa)

0.3-0.7

冲瓶介质Washing medium

无菌水aseptic water

冲瓶水压力Water pressure of washing bottle(MPa)

0.25

总功率(kw)
Power(kw)

4.4

4.4

5.2

6.2

7.8

10

13

外形尺寸(mm)Dimensions(LXWXH)(mm)

2230X1630X2250

2360X1830X2250

2900X2200X2250

3880X2200X2250

3700X3000X2350

4500X3300X2350

5500X4000X2450

总重量(kg)Weight(kg)

2200

2500

4200

6000

7000

9000

9000
