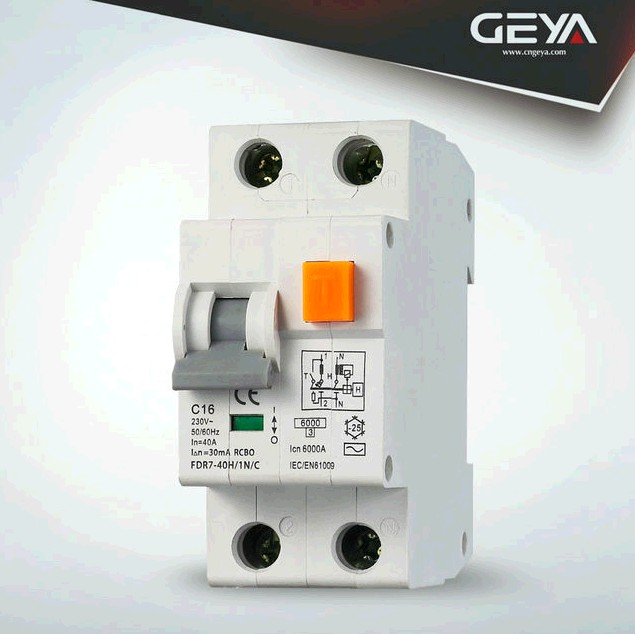

• FDR7-40H Residual Circuit Breaker

FDR7-40H Residual Circuit Breaker

FDR7-40H Residual Circuit Breaker residual circuit breaker

Product Details

Quick Details Parameter

Brand Name: : GEYA
Model Number: : FDR7-40H
Type: : Residual Current
Poles Number: : 2
Poles: : 1, 2, 3, 4
Rated working voltage: : 230V/400V
Certificate: : CE approved
Rated Current: : 6,10,16,20,25,32,40,50,63

Description


FDR7-40H Residual Circuit Breaker

RCCB is applicable to industrial area,commerical area,tall building and civil house.When there
is human electricity shock or if the leakage current of the line exceeds the prescribed value,it will cut off the power rapidly to protect human safety and prevent the accident duo to the current leakage.


Basic Specification and Technical Parameter
Rated Voltage
 240/415V
 Rated Current
 16,25,40,63A
 Rated Frequency
 50/60Hz
 Rated Residual Operating Current
 0.03,01,0.3,0.5A
 Rated Short Circuit Current
 In ≤  50A  500A    In ≤ 63A 630A
 Rated Circuit Breaking Capacity
 6KA
 Mechanical Life
 10000times
 Electric Life
 4000times


FDR7-40H Residual Circuit Breaker

FDR7-40H Residual Circuit Breaker


GEYA  ELECTRICAL Co., Ltd Exhibition history

Exhibition history


FAQ:

Q1. What’s the payment term?
A. We accept TT,30% deposit and 70% balance against copy of BL

Q2. How’s the delivery time?
A. usually it will take about 25 days for production

Q 3. Tell me the standard of package?
A. Normally are cartons, but also can pack into PLATES for more safe.

Q4. What kind of material of circuit breaker?
A. we have two types, one copper coil with silver point and the other is brass coil with copper point. It depends on your requirement. In fact, those two have no difference if normal work well. Only except the electrical life. Copper and silver is better and also higher price.
Q5.Could you offer Form A or C/O?
A. It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.

Q6.Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.

Q7.We wants to know month capacity.
A. 360000pcs/month

Q8.Where is your market?
A. Our products are popular in UK, Iran, Pakistan, India, Dubai, Zambia and so on. Some of them are our regular customers and some of them are developing. We hope you can join us and make mutual benefit from our cooperation.

Q9. What kind of certificate you have?
A. Our company already achieves ISO, and for products, we have CE, SEMKO, CB, and VDE (pending).


Production Process

production process


Certification

certification

Company Profile


geya logo

Geya Electrical Co., Ltd. is a leading manufacturer of MCB, RCCB, MCCB, switchgears, industrial plugs, socket outlets, relays and other electrical accessories in China. Our MCB products have proven popular all over the world, with our high quality, competitive prices, fast delivery and efficient service welcomed by all clients.

We now have 500 employees, including 50 engineers and technicians. Boasting magnificent office and production buildings, we are also equipped with comprehensive testing instruments. A leading manufacturer of low-voltage electrical appliances, we currently have 400 models available in 100 types and 5 series. Our main products now include circuit breakers, AC contactors, timers, relays, fuses, push buttons, switches, industrial sockets, multi-meters and SVC voltage regulators.

Having received ISO9001 certification for our management system, we also hold CB, CCEE, CE, UL and VDE product approvals. Exporting our various lines to clients throughout the international market, we now have customers in 60 countries in Europe, South America, the Middle East and Southeast Asia.

With our products welcomed by both importers and consumers at home and abroad, we look forward to your inquiries for future cooperation.
