• F DM Insulation Paper

F DM Insulation Paper

Two-layer flexible laminate insulating material consists of polyester fiber non-woven fabric/polyester film. UL(E310670) &RoHS

Product Details

Quick Details Parameter

Place of Origin: : Henan, China
Brand Name: : YAAN
Model Number: : 6632
Type: : Insulation Paper
Material: : Composite Polymer
Application: : High Voltage

Description


F DM Insulation Paper

Thickness: 0.15mm - 0.45mm

Width: 1000mm-1340mm

Color: White, pink and blue

Sheets: according to your request.

Tape: from 10mm width upwards

Main technical data

Technical Specification
Unite
Value
Thickness
mm
0.12
0.15
0.18
0.20
0.23
0.25
0.30
0.35
0.40
Thickness Tolerance
mm
±0.01
±0.02
±0.02
±0.02
±0.02
±0.03
±0.03
±0.04
±0.04
Nominal Grammage and Tolerance
g/
0.07
0.07
0.07
0.07
0.07
0.10
0.10
0.10
0.10
Thickness of polyester film
mm
140±20
150±23
190±29
210±32
240±36
255±38
310±46
365±55
450±68
Tensile Strength
MD
No Bending
N/10
mm Width
≥80
≥90
≥100
≥130
≥160
≥180
≥200
≥240
≥280
After Bending
≥70
≥85
≥90
≥120
≥140
≥160
≥180
≥220
≥260
TD
No Bending
≥70
≥85
≥90
≥120
≥140
≥160
≥180
≥220
≥260
After Bending
≥60
≥70
≥80
≥110
≥130
≥150
≥170
≥210
≥240
Elongation
MD
No Bending

≥8
≥10

After Bending



TD
No Bending
≥10
≥15

After Bending



Breakdown Voltage
KV
≥6
≥7
≥8
≥10
≥13
≥14
≥16
≥18
≥22
Bond strength at 25 degree C

No delamination
Bond strength at 180 degree C

No delamination, no blister, no adhesive flow
Temperature

155


F DM Insulation Paper

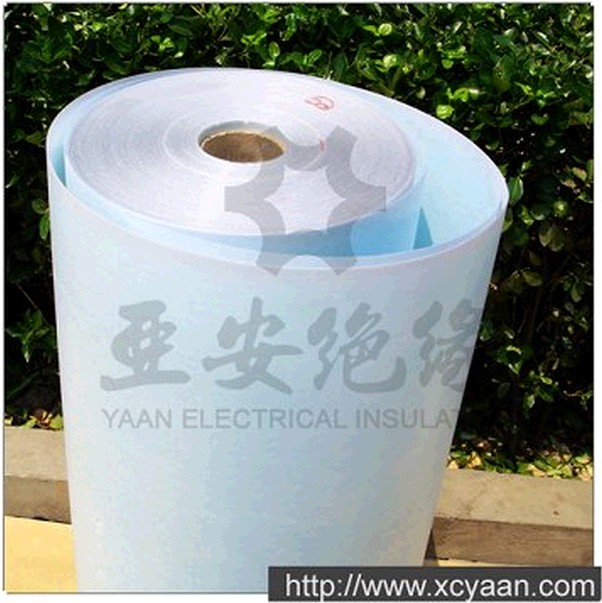

bigger pic



Company Profile


yaan logo

YAAN Insulation was founded in 1986 (The original name is Xuchang Weidu District YAAN Insulating Material Plant) and was completed in corporate restructuring in 2008, then changed its name into Henan YAAN Electrical Insulation Material Plant Co., Ltd. In 2009, YAAN insulation successful mergered Xuchang Xinwenfeng Insulation Material Plant, which has 52 years experience of varnished cloth production.
Since the plant was established, YAAN has maintained the core discipline: "The high quality today is the market tomorrow; the satisfaction of the customers is the life of our enterprise." It has strict requirements of the quality, trying to return every customer with high quality products and good services. Over the past 20 years, persisting the spirit of "Working hard and making a rapid progress" , YAAN has gradually developed into specialized enterprise which produces Class B, Class F and Class H insulation materials, the main products lie in:
1. Flexible Laminates
6520 6521 polyester film/presspaper,
6630DMD insulation paper,
6641F-DMD insulation paper,
6640NMN insulation paper,
6650NHN insulation paper,
MGM polyester glass cloth composite insulation paper,
2. Varnished cloth
oil varnished cloth,
oil varnished synthetic cloth,
alkyd varnished glass cloth,
polyester varnished glass cloth,
silicone varnished glass cloth
3. Textile Tape
Cotton tape
Polyester tape
Fiberglass tape
The insulation system has been approved by UL(UL File No. E310670)and the products have passed ROHS test. With more than 50 years’ experience and innovation, YAAN Insulation Material Plant provides high-quality insulation products and reliable professional service for many military, motor, transformer enterprises.
