  • Extracting and Dispensing for Tea and Juice

Extracting and Dispensing for Tea and Juice

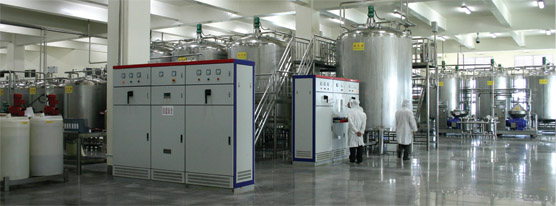

Extracting and Dispensing for Tea and Juice can offer you turn-key project including extracting, sugar melting, blending, ect, with strong technical support from our factory and relative industry from home and abroad.

Product Details

Quick Details

Description


1 Hot water tank
Stainless steel SUS304, internal bladder δ3mm, external stainless steel board, and polyamine foam insulation, complete closed、man-hole、glass liquid level meter、material inlet, fly-proof、 dust-proof、four adjustable feet、and material outlet at bottom is Ф38.
2 Hygiene centrifugal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 10m3/h、lifting is 24m,motor power 2.2Kw、and assembly ABB motors.
3 Plate heating exchanger
SUS 304 sheet bar, mosaic type structure, food grade high temperature resistance rubber gasket, the outside of frame is packed by stainless steel, heating by steam and inlet and outlet is Ф38.
4 Sugar melting tank
Stainless steel SUS304, internal bladder δ3mm, mile board is δ1.5mm, external stainless steel board is δ1.5mm, and polyamine foam insulation, complete closed、vertical syrup stirring, 60r/min、digital temperature gauge、motor power is 1.1KW. Washing head 、material outlet at bottom is Ф38 and breather.
5 Syrup conveying pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 5m3/h、lifting is 36m,motor power 1.5Kw、and assembly ABB motors.
6 Duplex barrel filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 100 with butterfly valve.
7 Sack barrel filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 150 with butterfly valve.
8 Plate cooler
SUS 304 sheet bar, mosaic type structure, food grade high temperature resistance rubber gasket, the outside of frame is packed by stainless steel, cooling by cooling water and inlet and outlet is Ф38.
9 Sugar melting operation platform
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 10m3/h、lifting is 24m,motor power 2.2Kw、and assembly ABB motors.
10 Blending tank
Stainless steel SUS304, barrel is δ3mm, single closed、quick pressing manhole、glass liquid level meter、material inlet and outlet、CIP washing head is Ф38 、fly-proof, dust-proof and vertical syrup stirring, 60r/min and four adjustable feet.
11 Material conveying centrifugal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 5m3/h、lifting is 24m,motor power 1.5Kw、and assembly ABB motors.
12 Duplex filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 100 with butterfly valve.
13 Sack filter
Filtrating area is 0.3㎡、material inlet is Φ38、stainless steel filter barrel、inlet and outlet pressure gauge、stainless steel filter web、filter precision is 150 with butterfly valve.
14 Ingredient operation platform
It is stainless steel, the round stainless steel support feet, stainless steel rectangular tube, stainless steel checkered plates and stainless steel safety guard. The dimension is 6000X1000X1800mm (LxWxH).
15 CIP reversal pump
The material contact parts which are made of SUS304, hard alloy mechanical sealing, flowing is 20m3/h、lifting is 24m,motor power 4.0Kw、and assembly ABB motors.
16 CIP distributor Washer group
Stainless steel SUS304, completer closed, polyamine foam insulation, complete closed、and the whole set of temperature keeping acid tank、alkali tank and hot water tank、CIP inlet pump 10T/H、lifting 36m, heating exchanger is 10㎡, control cabinet, and the system is connected by pipelines、valves、pipes、cables and frame.




Company Profile

Jiangsu ASG  Packaging Machinery Group Co., Ltd. is located in Jinfeng Industrial Zone, Zhangjiagang city, owns a 30,000m2 international standard workshop. ASG professionally researches, develops and manufactures beverage-packaging machinery and dairy packaging machinery. We bought several sets numerical control machines from American and Japan. The fixed assets of ASG exceed RMB 100 million. Since its foundation, ASG has concentrated on a single area of beverage and milk product packaging machinery. Recently, we already finished some researches and were going on some project, including "automatic high speed aseptic filling machine of liquid food", which is the state torch program, "mono-block filling machine of juice with pulp", "liquid milk & beverage continuous high-speed packing robot" etc. We took part in national standard making, and then we became the leader in the industry. Moreover, we cooperated with foreign and domestic famous enterprises, such as Nescafe, Coca Cola, Pepsi, Bright Dairy, Robust, Arawana, Dongpeng, Yang Jiajia, Tianjin Nanji, Shanghai Yangzhong, Tianjin Huaqi Group etc, also our products are exported to all over the world. The company always hold the philosophy of "the quality wins the market, the brand forms the success". We, full of enthusiasm and sincerity, warmly welcome domestic and overseas customers.
