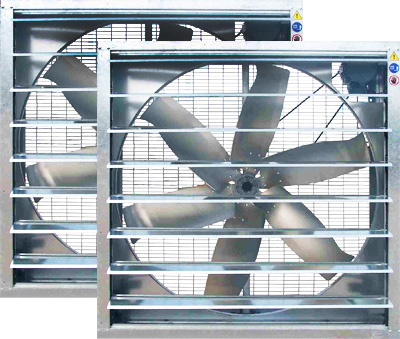

Enclosed area ventilator

A ventilator that can be used in

Chicken/livestock farms,

Enclosed greenhouse,

Factory warehouses.

Designed for hear dissipation, ventilation and dedusting.



Product Details

Quick Details Parameter

Use : Chicken/livestock Farms, Enclosed green house
Blade diameter (mm) : 710-1250
Blade speed (r/min) : 439-610
Motor speed (r/min) : >=1400
Wind speed (m/h) : 18000-44000
Pressure (Pa) : 56-73
Noise level (Db) : <=70
Power input (w) : 370-1100
Voltage (V) : 380
Height (mm) : 800-1380
Width (mm) : 800-1380
Thickness (mm) : 400-450

Description

 Model: FM-A,B
Ventilators that are specifically designed for enclosed area ventilation. The advantages of these products are low total head, high wind speed, low noise level, energy saving, easy to maintain, and long usage life.

Model: FM-A

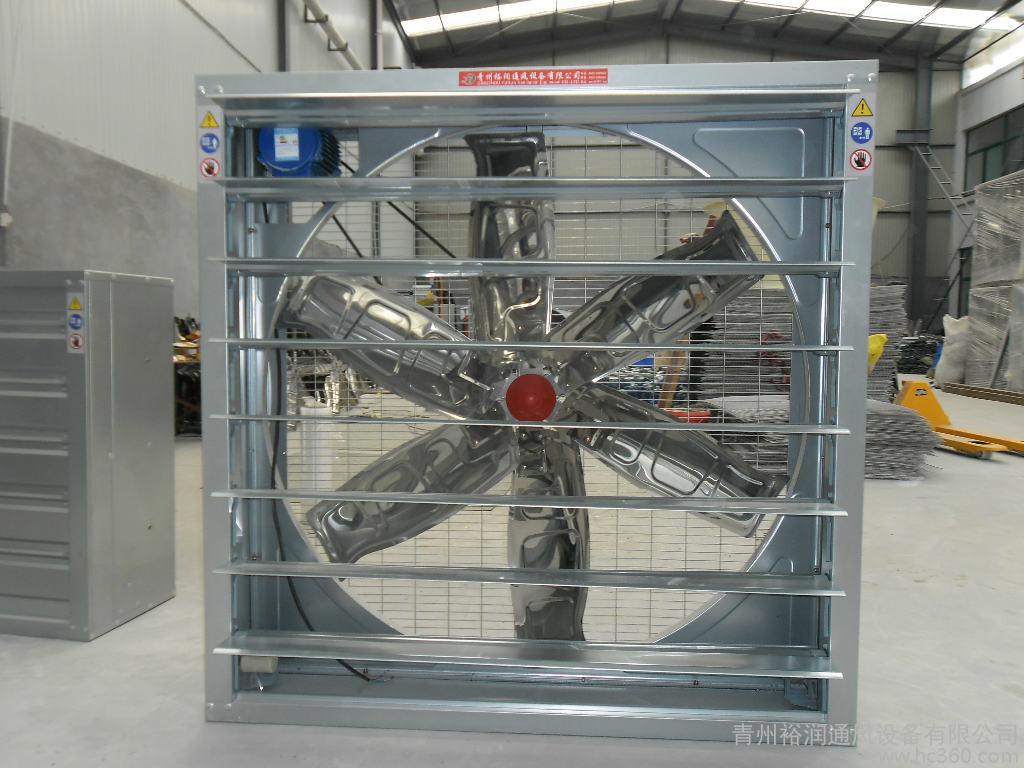

FM-A fan
Ventilators that purprosed to ventilate indoor air and dedust the indoor environment. they uses a powerful motor to drive the vitiated air out of the building, and allow the fresh air to flow into the building. When the blade moves the blind attached to it opnes automatically , and the blind will close when the blade is not moving. Therefore, it prevents dust, objects, rain water and snow from getting into the building. When the ventilator is equiped with automatic temperature control system, the ventilator will be able to work individually.

Model: FM-B
FM-B
Ventilators that upgraded from FM-A. the individual blind on the fan can be controled through centrifugal force, so the fan will be able to work with full efficient. It meets the requirements of energy saving while increase the wind speed.

Product Catalog:
Product catalog

Actual working environments:
Product

Product
