  • Electromagnetic Flow Meter

Electromagnetic Flow Meter

MTLD series electromagnetic flow meter is produced according to JB/T9248-1999 standard. The operation of electromagnetic flow meter is based on Faraday’s Law. It is used for measuring the volume flow of electrically conductive liquid in the pipeline, such as water, seawater, sewage, slurry, pulp, acid, alkali, salt liquid food slurry etc. Email: julin@mec.com.cn

Product Details

Quick Details

Description


Overview:

MTLD series electromagnetic flow meter is produced according to JB/T9248-1999 standard. The operation of electromagnetic flow meter is based on Faraday’s Law. It is used for measuring the volume flow of electrically conductive liquid in the pipeline, such as water, seawater, sewage, slurry, pulp, acid, alkali, salt liquid food slurry etc. MTLD series are widely applied in petro, chemical, thermoelectricity, mining and metallurgy, coal industry, food industry, sewage treatment and other industries. Our electromagnetic flow meter has two types: Integrated type electromagnetic flow meter and Split type electromagnetic flow meter.

Technical Parameter:
1.Accuracy: pipeline type,  0.5,  0.1
2.Measured medium temperature:Ordinary rubber lining: -20-60 ° CHigh-temperature rubber lining: -20-90 ℃
PTFE lining: -30 -100 ° C
High temperature PTFE lining: -30 - 160 ° C
3.Rated working pressure:
Pipeline: DN6 ~DN80: ≤ 2.5Mpa, DN100-DN150: ≤ 1.6Mpa, DN200-DN1000: ≤ 1.0Mpa,  DN1100~DN2200: ≤0.6Mpa,high pressure can be customized
4.Flow measurement range: Flow measurement range corresponds to the range of flow rate: 0.1 ~ 15m / s, Measuring range:  1:150
5.Conductivity range:
The measured fluid conductivity: ≥ 5μs/cm (integrated type)
The electromagnetic flow meter can be selected to measure for the medium containing water as a main component and the conductivity of which is in the range of 200 - 800μs/cm.
6.Signal output:4 - 20mADC, RL≤ 500Ω
7.Power supply: 24VDC  220VAC
8.Straight pipe length: pipeline: upstream ≥ 5D , downstream ≥ 3D
9.Connection form: adopting flange connection between flow meter and piping The flange connection size should comply with the provisions of GB11988.
10.Explosion-proof : EX dllBT4, EX dllCT6
11.Ambient temperature: -25 ℃ - 60 ℃
12.Relative humidity: 5% - 95%
13.The total power consumption: <20W
14.Display: LCD

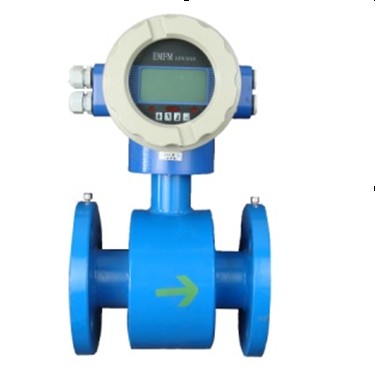

MTLD Series Electromagnetic Flow Meter
