Double column conventional vertical turning lathe machine tool price CK5263

1.Hand scraping
2.Low maintenance
3.60 years experience
4.Robust construction

Product Details

Quick Details Parameter

Condition : New
Place of Origin : Liaoning, China
Type : Vertical
CNC or Not : Normal
Voltage : 380V
Weight : 130t

Description

Double column conventional vertical turning lathe machine tool price CK5263


1.Usage range

 a. Turning the internal and external cylindrical surface and plane

 b. Turning internal and external conical surface

 c. Grooving

 d. Head face

 e. Severance

2.Advantage

 a.high quality casting iron

 b. high accuracy double-row short cylindrical roller bearings

 c.manual fine scraping(high precision)

 d.Working table adopts hydrostatic guide way.

 e.the spimdle adopts zwz which got wear resistant

 f.gear was made by quenching way which got little noise



3.Main specification and parameters

Name Unit C5263
Max.turning diameter mm 6300
Table diameter mm 6000
Max.height of workpiece mm 3150
Max.weight of workpiece T 50
Max.cutting force of right tool post KN 50
Max.cutting force of left tool post KN 35
Max.torque of table KN.m 100
Grade of table rotate speed grade stepless(mechanical 2 gears)
Range of table rotate speed r/min 0.5~50
Range of feeding mm/min 1~500
Beam travel mm 2800
Horizontal travel of tool post mm 3415
Vertical travel of tool post mm 1600
Beam moving speed mm/min 350
Fast moving speed mm/min 4000
Max. swing angle of tool post degree ±30°
size of toolbar mm 50×50
Power of main motor KW 75
Overall size of machine(L*W*H) mm 13550*6850*6800
Machine weight T 130

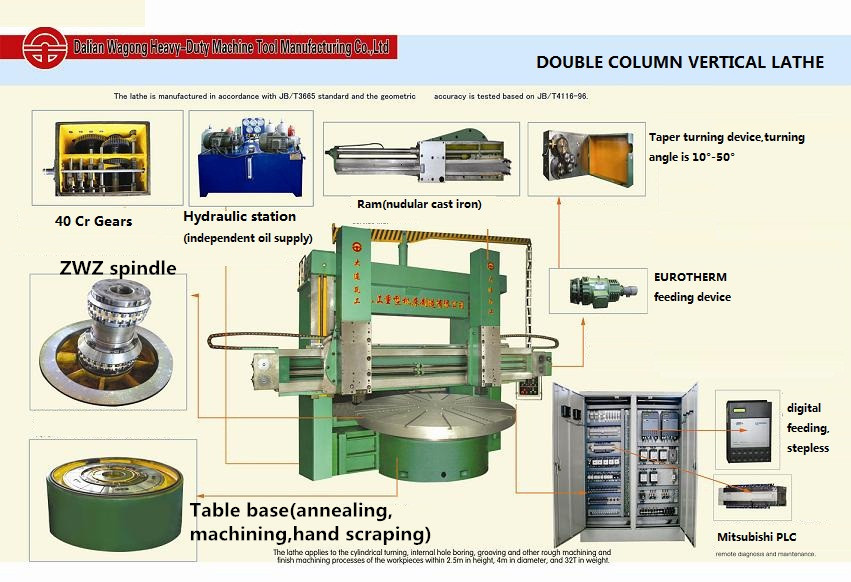

 4.Charactors:

a. The framework is scrapped by hand which has high geometric accuracy. In order to increase the lubrication oil reserve and decrease the friction coefficient.

b. The spindle adopts the world famous brand "ZWZ" with high accuracy double-row short cylindrical roller bearing take the effect of centering in the process of

running or rotating, because radial clearance of bearing is adjustable; the worktable has higher rotation accuracy.

c. The cutter head device is composed of cutter head slide base and ram. The ram prefer the ductile iron because of its ability to with stand shock loads,

high tensile strength, and abrasive resistance.

d. All gears in adopt harden and grinding processing and have the advantages of stable drive, low noise. The gears adopt 20 CrMnTi through hardening and

grounding.

e. After the process of anneal and turning. The guide rail and worktable scrapped by hand sealed by oil slick to make sure that they can run steadily.

5.After-sale Service:

Our promise: Zero distance service

Our goal:No need service

Time:Free charge of guarantee within one year(except wrong operation);

          Paid service for whole lifetime.

6. Main Export Markets:

 Great efficient, high accurate, trouble free, and carefree effects with small investment, our machines sell well in both domestic and overseas markets, we have been exported to to Turkey,Chile, India, USA, Russia and more than 20 countries.

Company Profile

Dalian Wagong Heavy-duty Machine Tool Manufacturing Co., Ltd., a key enterprise of Dalian equipment manufacturing industry, manufactures common, CNC and single/double-column vertical lathes. We boast powerful manufacturing capacity, advanced testing means and strict quality assurance systems. We have been honored as “Dalian Credit AAA Enterprise” Our products are inspected as qualified products by Dalian Institute of Product Quality Supervision & Inspection (JB/T3665.3-2006). Our vertical lathes are chosen to process turbine generator parts for Dongfang Turbine Co., Ltd. and aircraft parts for AVIC Xi’an Aero-Engine Group Ltd.

In the business philosophy of “Credit & Faith”, we win customers with high-quality products and zero-distance after services. Our equipment features small investment, high efficiency, high precision, zero failure and great assurance.
