Product Details

Quick Details Parameter

Place of Origin: : Zhejiang, China
Brand Name: : ANDELI
Model Number: : ASY
Theory: : Time Relay
Usage: : General Purpose
Size: : 88x58x68
Protect Feature: : Sealed
Contact Load: : Low Power

Description

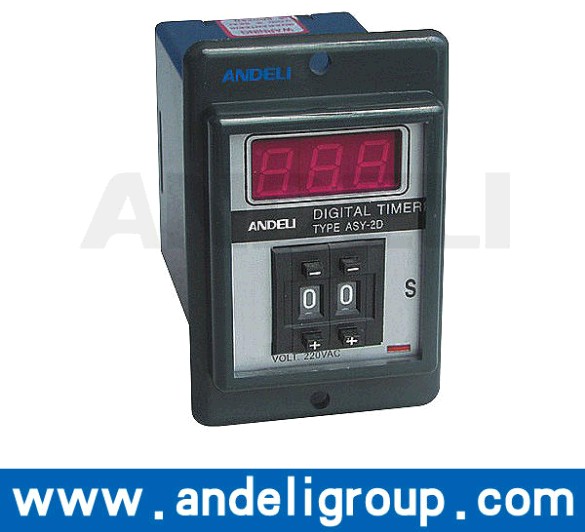

Digital timer relay ASY-2D ASY-3D

Why choose us?

1. 20 years - Andeli Group Co., Ltd is founded in 1993.
2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE.
3. 300 cooperating companies - We have over 300 cooperating companies.
4. 3000 workers - We have over 3000 workers.
5. USD150, 000,000 - The total assets is USD150, 000,000.
6. 235,000 square meters - The area of Andeli is 235,000 square meters.
7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……


Specification

Classification
Digital Timer
Digital Timer
Timer
Specification Model
ASY-2D
ASY-3D
H3Y-(ST6P)
Dimension
88H × 58W × 68D
88H × 58W × 68D
28H × 21W × 52.6D
Mounting & Socket
Surface(-N)
PF083A
PF083A
PYF08A(E)
PYF14A(E)
Flush(-Y)
US-08 P3G-08
US-08 P3G-08
With Y-20 adapter
Full Timing Range
SEC: 9.9,99
MIN: 9.9,99
HR: 9.9,99
SEC: 9.99,99.9,999
MIN: 99.9,999
HR: 99.9,999
SEC: 1,3,5,10,30,60,120
MIN: 3,5,10,30,60
HR: 3
Rated Voltage (V)
AC: 12,24,110,220,240
50/60Hz
DC: 12,24
AC: 12,24,110,220,240
50/60Hz
DC: 12,24
AC: 12,24,110,220,240
50/60Hz
DC: 12,24
Indicator Operating
After contact transfer
After contact transfer
Power, up Operating
O/P Contact
Model
ASY-2D
ASY-3D

Time Limit 1C



Time Limit 2C
5A
5A

Instantaneous 1C



Life
Mechanical
5 × 106 Times
5 × 106 Times
5 × 106 Times
Electrical
105 Times
105 Times
105 Times
Accuracy
Repeat Error
±0.05% max
±0.05% max
±3% max
Setting Error
0
0
-
Voltage Error
±0.05 Sec
±0.05 Sec
±2% max
Temp Error
±0.05 Sec
±0.05 Sec
±5% max
Reset Time
0.3 sec max
0.3 sec max
0.2 sec max
Consumed Power
5VA
5VA
3VA
Ambient temperature
-10oC~+55oC
-10oC~+55oC
-10oC~+55oC
Ambient Humidity
48~85% RH
48~85% RH
48~85% RH
Weight
230g
230g
45g
