  • Diesel Small Concrete Mixer

Diesel Small Concrete Mixer

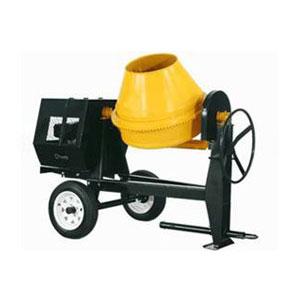

Diesel Small Concrete Mixer CM-2A 260-400L diesel concrete mixer with two wheels belongs to small concrete mixer. CCM-2A 260-400L diesel concrete mixer is powered by diesel engine.

Product Details

Quick Details

Description

Model Number

CM-2A 260

CM-2A 300

CM-2A 350

CM-2A 400

Charging Capacity

260L

300L

350L

400L

Reclaiming Capacity

230L

270L

320L

370L

Productivity

6-10m³/h

8-12 m³/h

10-14 m³/h

12-16 m³/h

Motor Power

Air-cooled diesel engine 4HP or 6HP

Mixing Power

4HP

6HP

Speed of Mixing Drum

30r/min

Thickness of Drum

2.75-3.75mm

Water Supply Mode

Hand control

Working Cycle Period

1min

Maximum aggregate sizes

60mm

Discharging Way

Hand Control

Transmission Way

Gear Wheel

Outline Dimension

2.2CBM

Overall Dimensions(l*w*h)

1900x900x1100mm

1960x940x1100mm

1960x940x1100mm

1960x1100x1200mm

Weight

333kg

353kg

379kg

389kg

Color

Yellow or as your wish

Packing detail

Iron frame 12 sets/20’container 28 sets/40’ container

Guarantee

Half of year

Supply ability

100 sets per month

Type of the tires

4.00-12(Pneumatic wheels diameter 550x150mm)


Diesel Small Concrete Mixer CM-2A 260-400L diesel concrete mixer with two wheels belongs to small concrete mixer. CCM-2A 260-400L diesel concrete mixer is powered by diesel engine.

This series of small concrete machine uses a revolving drum to mix materials, like sand, gravel, water to produce concrete. CM-2A 260-400L diesel concrete mixer is ideal for DIY using and CM-2A 260-400L diesel concrete mixer is also professional small concrete mixer.

Diesel Small Concrete Mixer

Here are some features of CM-2A 260-400L diesel concrete mixer two wheels:
1. CM-2A 260-400L diesel concrete mixer is maily used in the small-scale architecture for mixing mortars, etc..
2. CM-2A 260-400L diesel concrete mixer with two wheels is easily to be moved and has a small volume.
3. CM-2A 260-400L diesel concrete mixer has rapid mixing speed.
4. The drum of CM-2A 260-400L diesel concrete mixer is made of thick steel and CM-2A 260-400L diesel concrete mixer has double steel spiral blades. So CM-2A 260-400L diesel concrete mixer has long service life.
